Jewellery CAD, modelled to
Jewellery CAD, modelled to
the tolerances you cast at.
Every stone seated, every prong modelled, every file documented — production-ready designs you can send straight to the bench.
18Stone settings
3Metal finishes
19Studio renders
0.1 mmModel tolerance

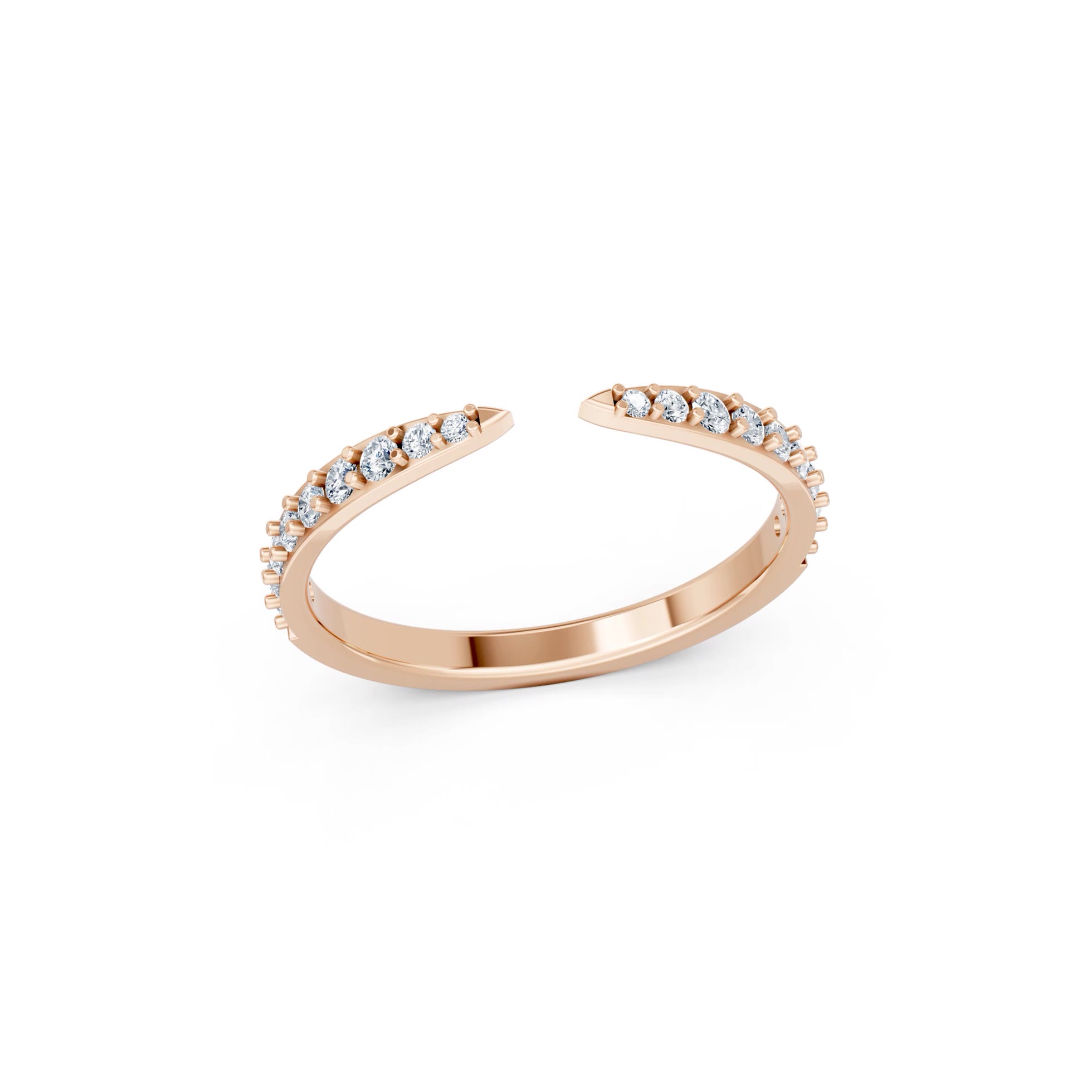

In motion
Every finish, turning.
The same model rendered in each metal — so you can judge proportion and stone spread before a single gram is cast.
The Renders
Open the full gallery
Every angle, every finish.

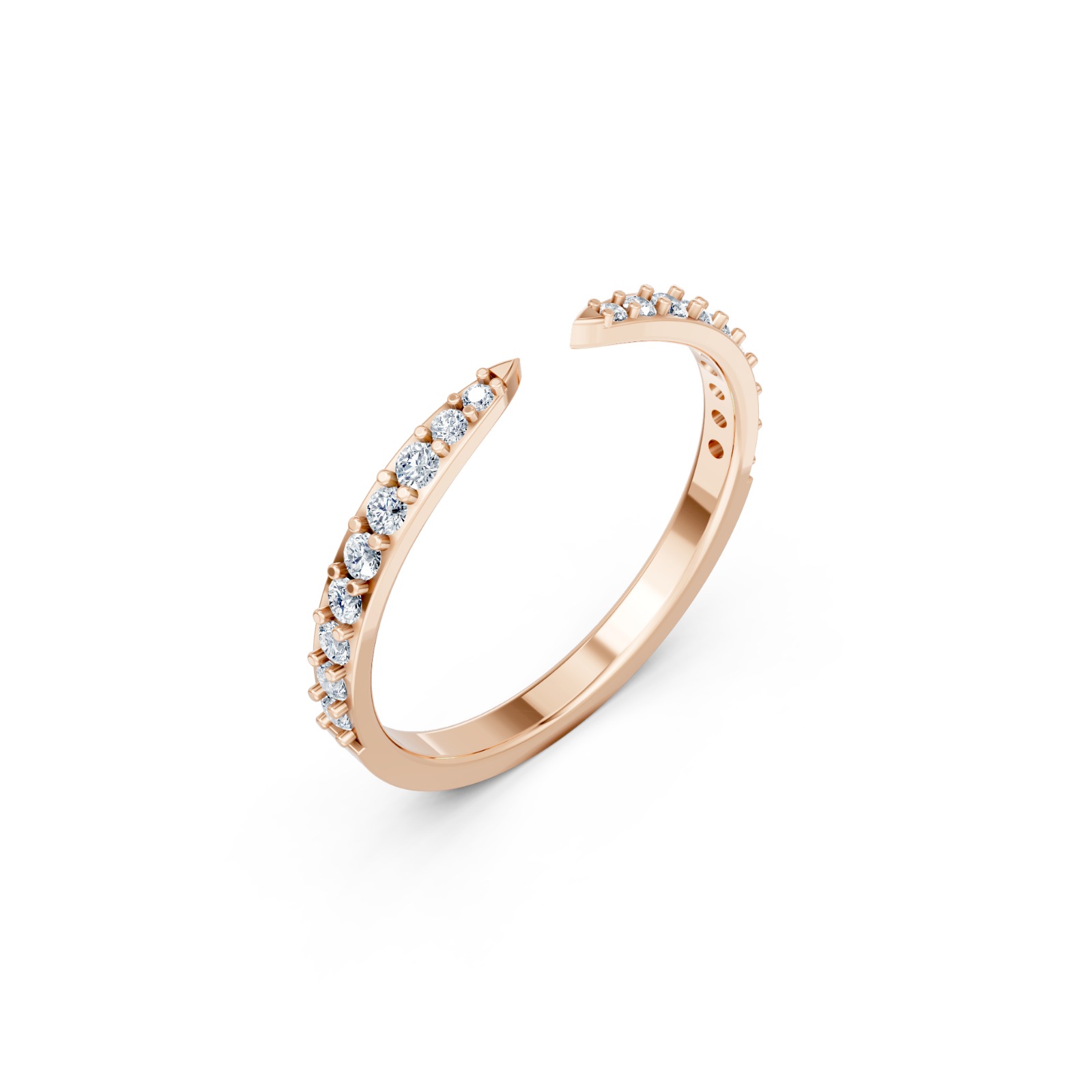

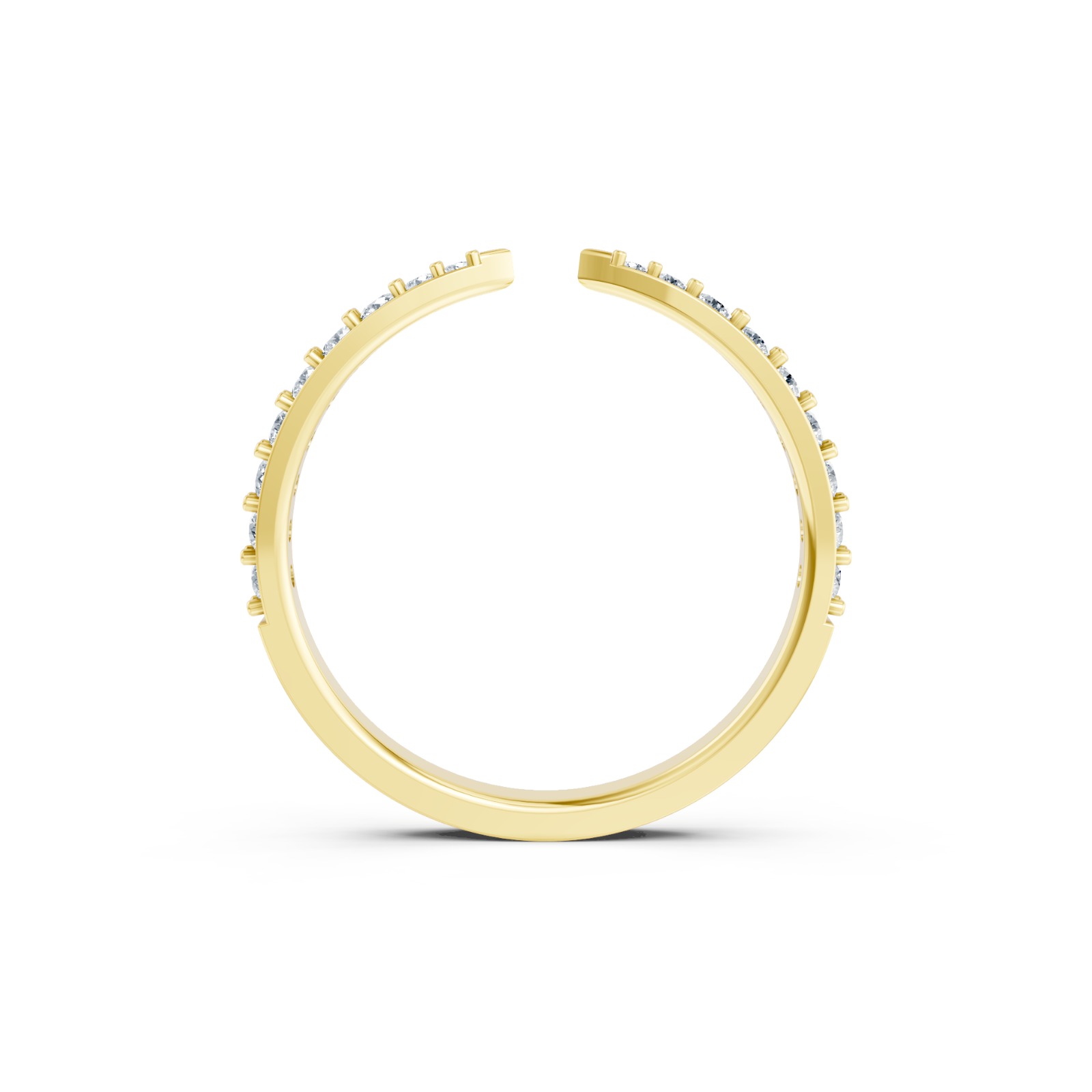

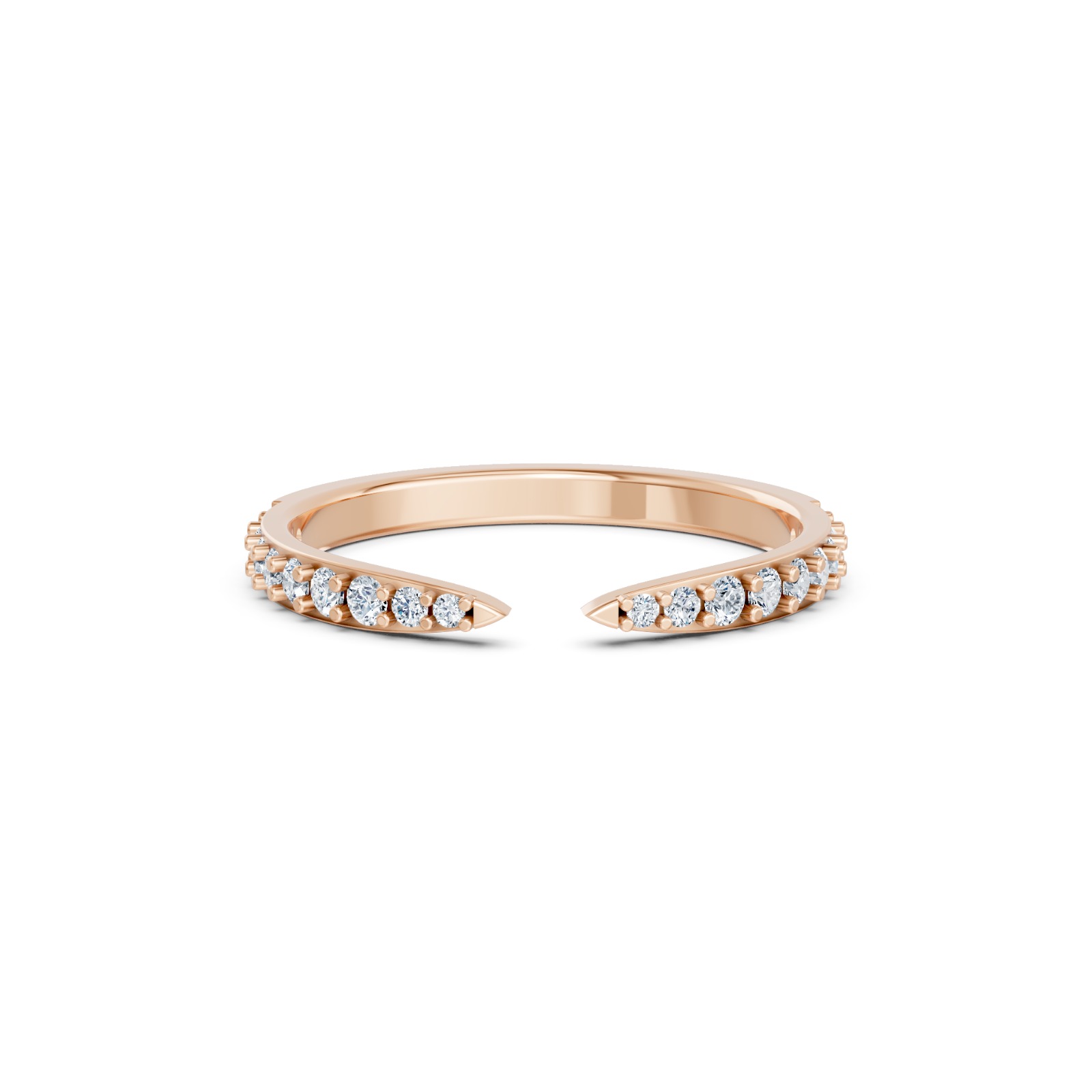

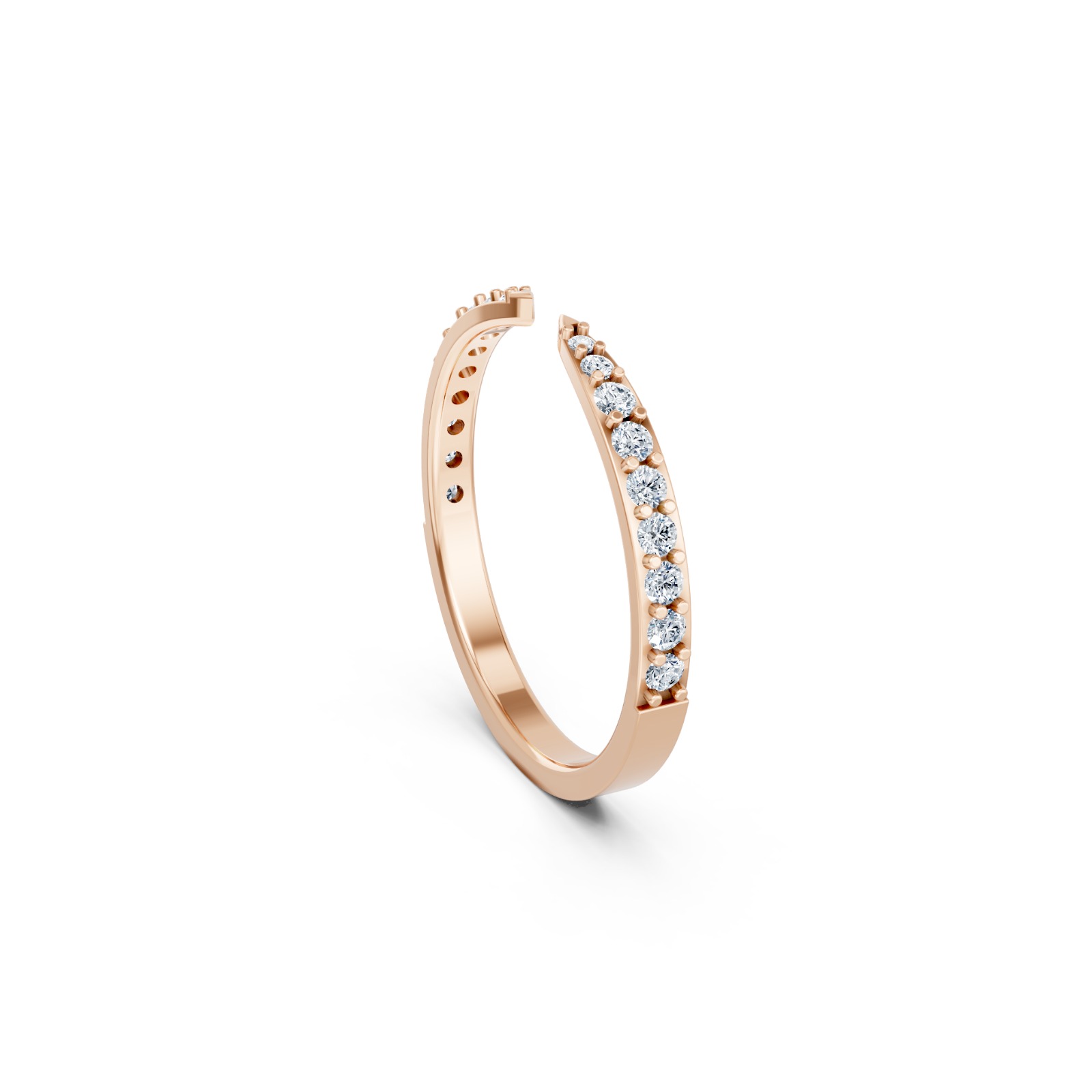

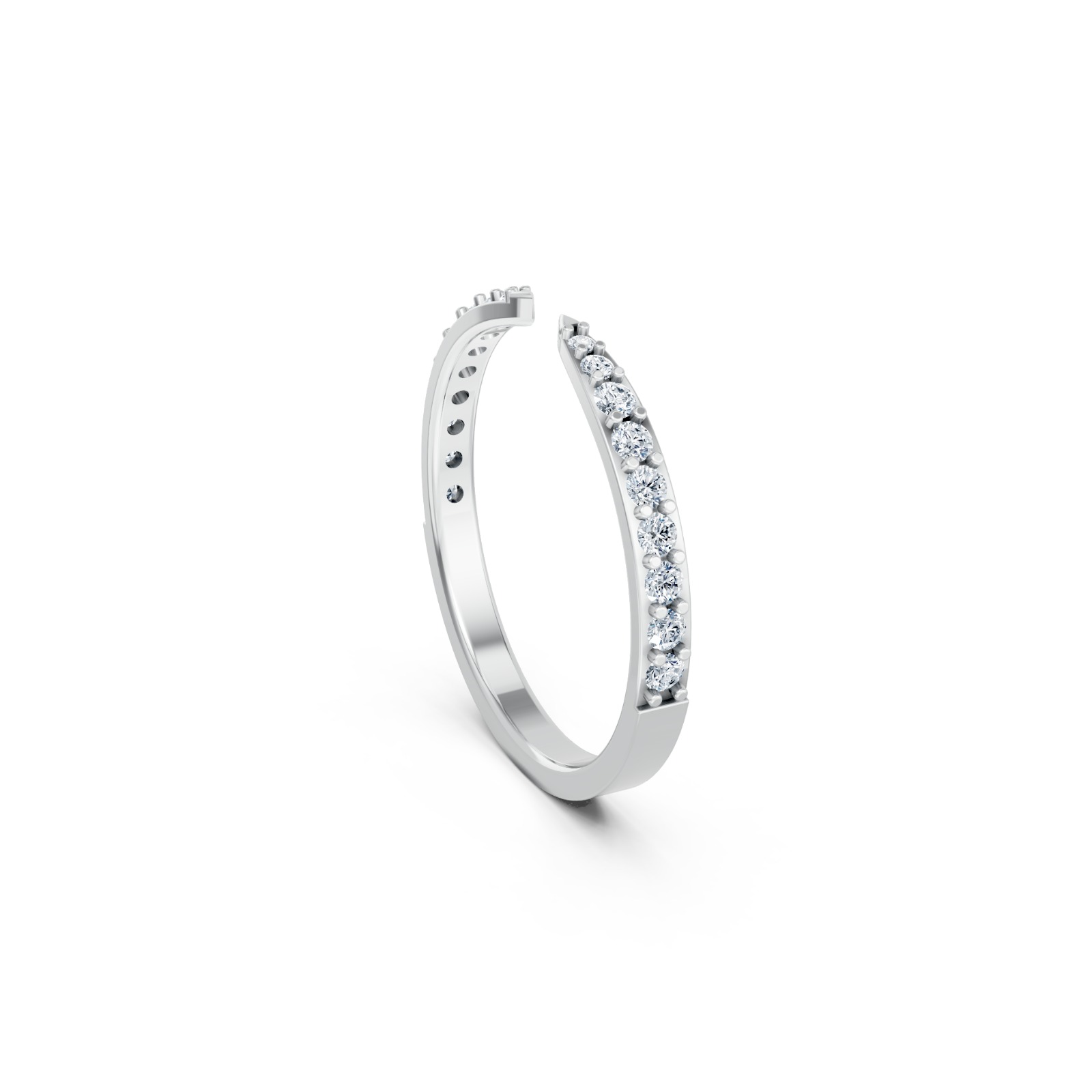

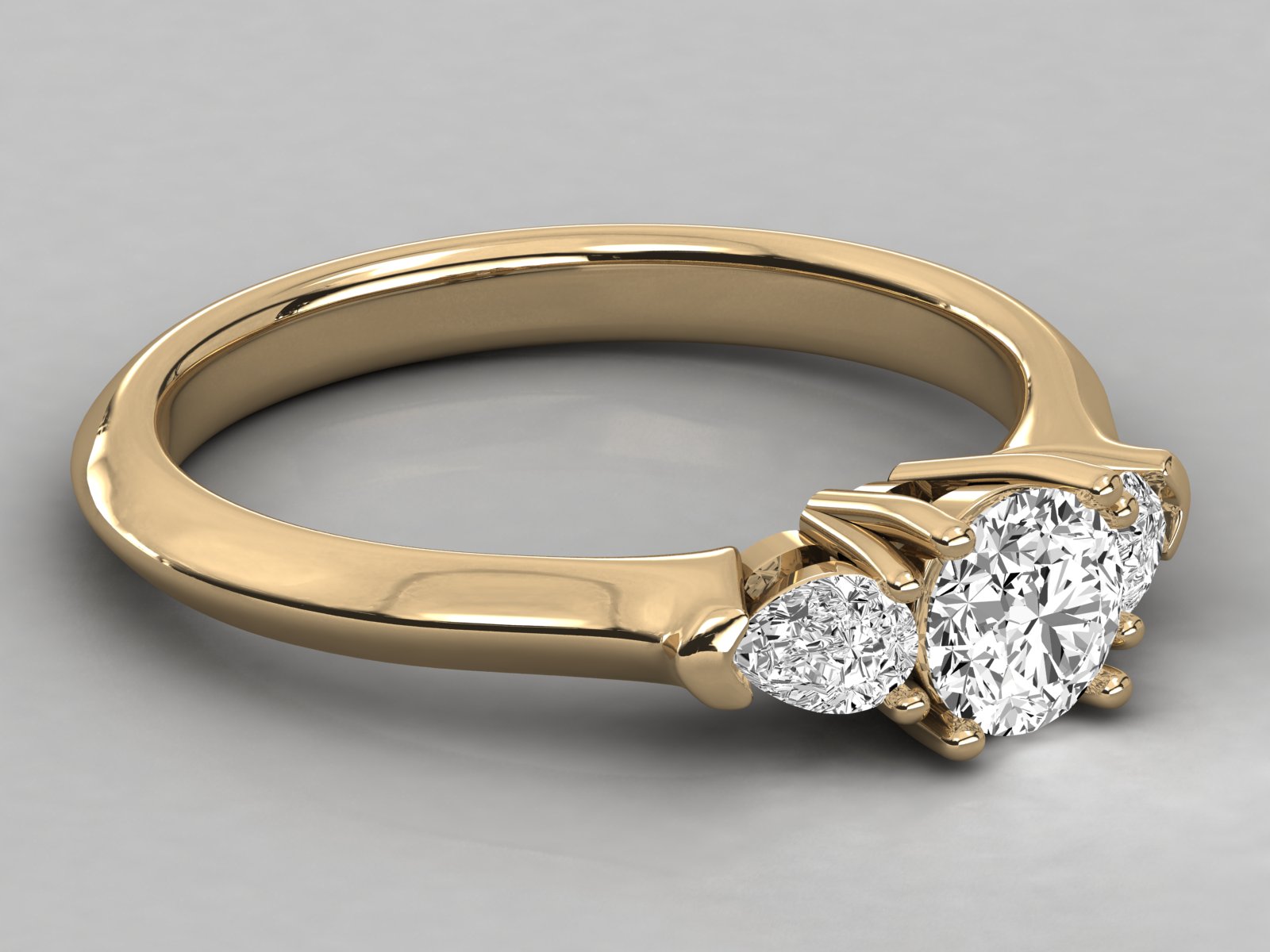

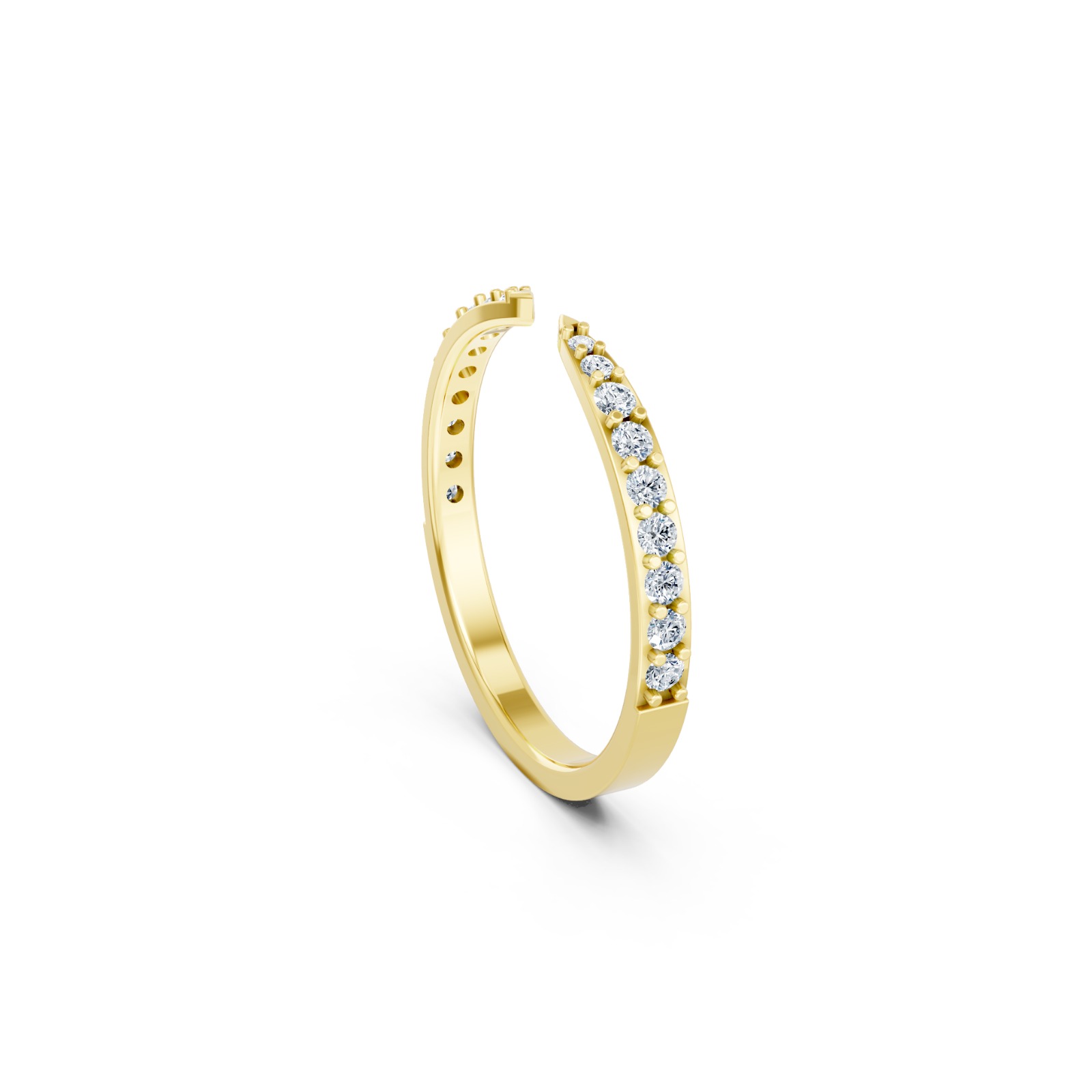

19 studio renders across yellow, white and rose gold — front, profile, three-quarter and top views.
The Specification
Documented down to the stone.

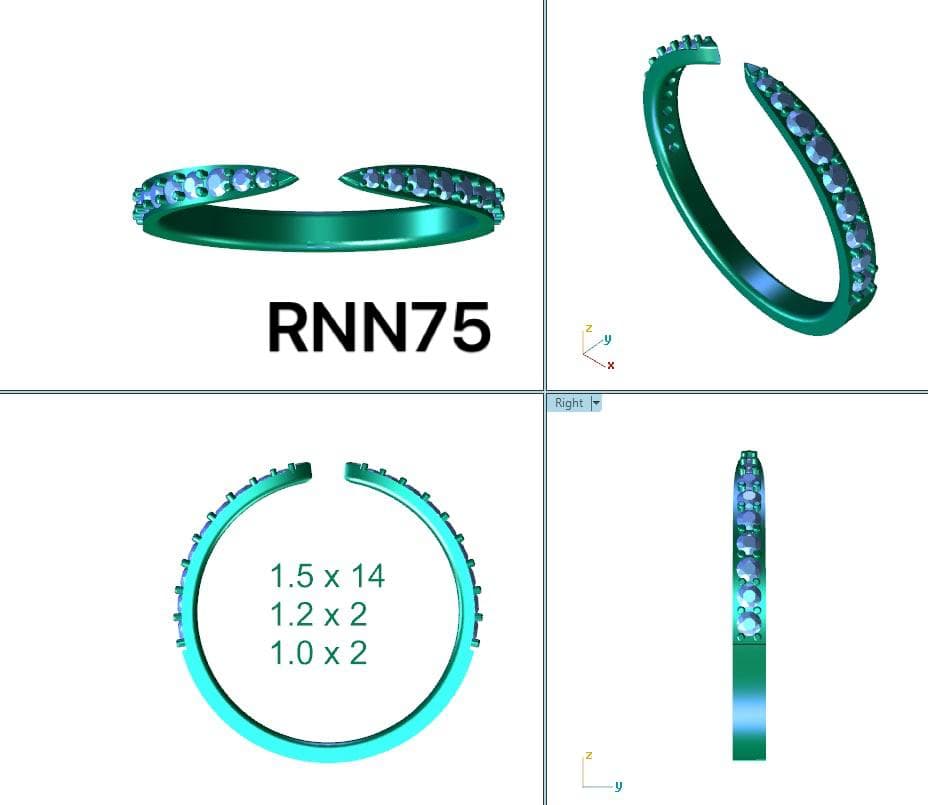

Every design ships with an orthographic CAD sheet: the full stone schedule, the model code, and views from every axis. No guesswork when it reaches your setter.
14
× 1.5 mm stones
2
× 1.2 mm stones
2
× 1.0 mm stones
18
total settings
- Modelled seats and prongsNot boolean cuts — the mesh stays watertight through casting prep.
- Real-world scaleBuilt in millimetres and resizable to any standard band size.
- Orthographic viewsTop, front, right and perspective, all dimensioned.
Try before you buy
Browse every design
Free samples.
Judge the modelling yourself. These downloads are free and need no account — take one, open it, then decide.

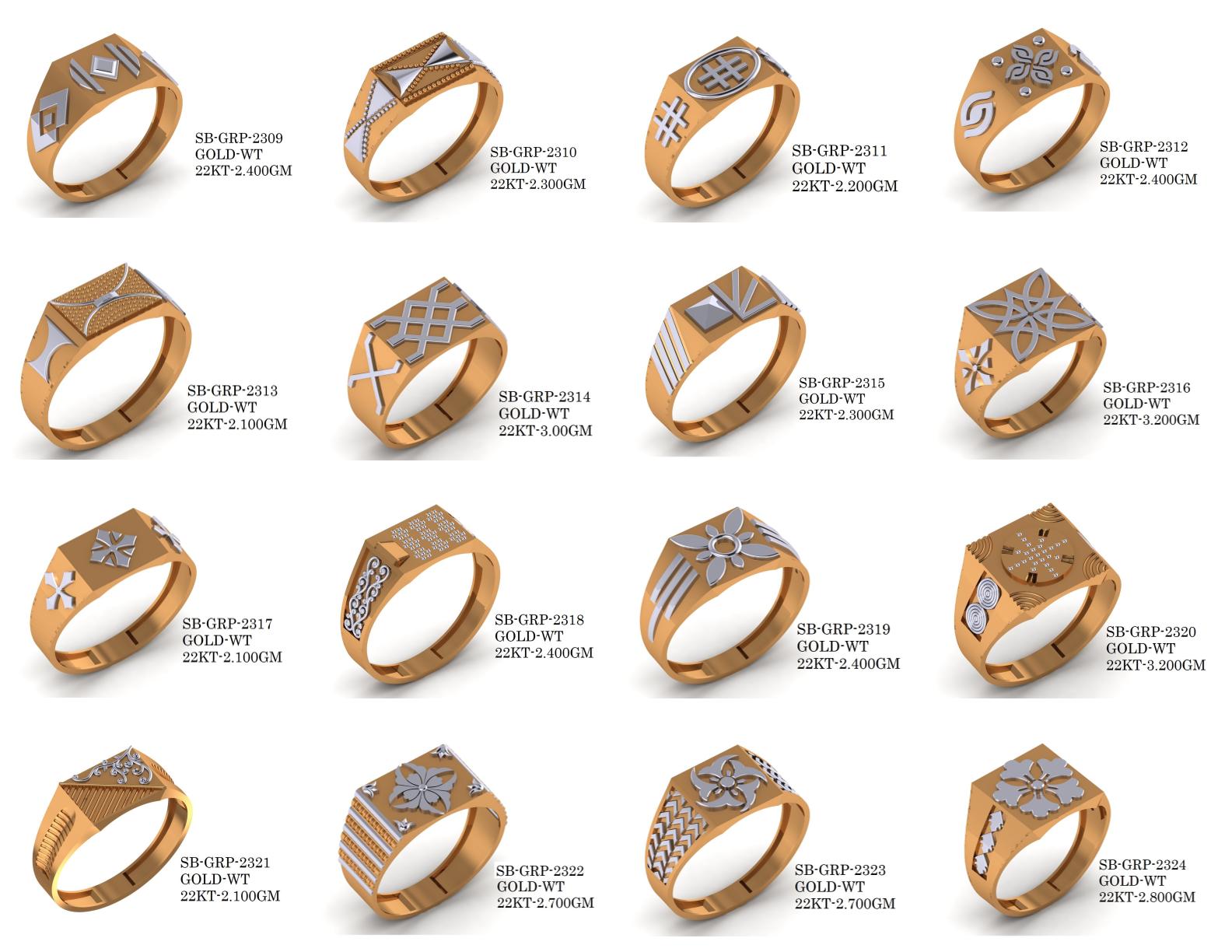

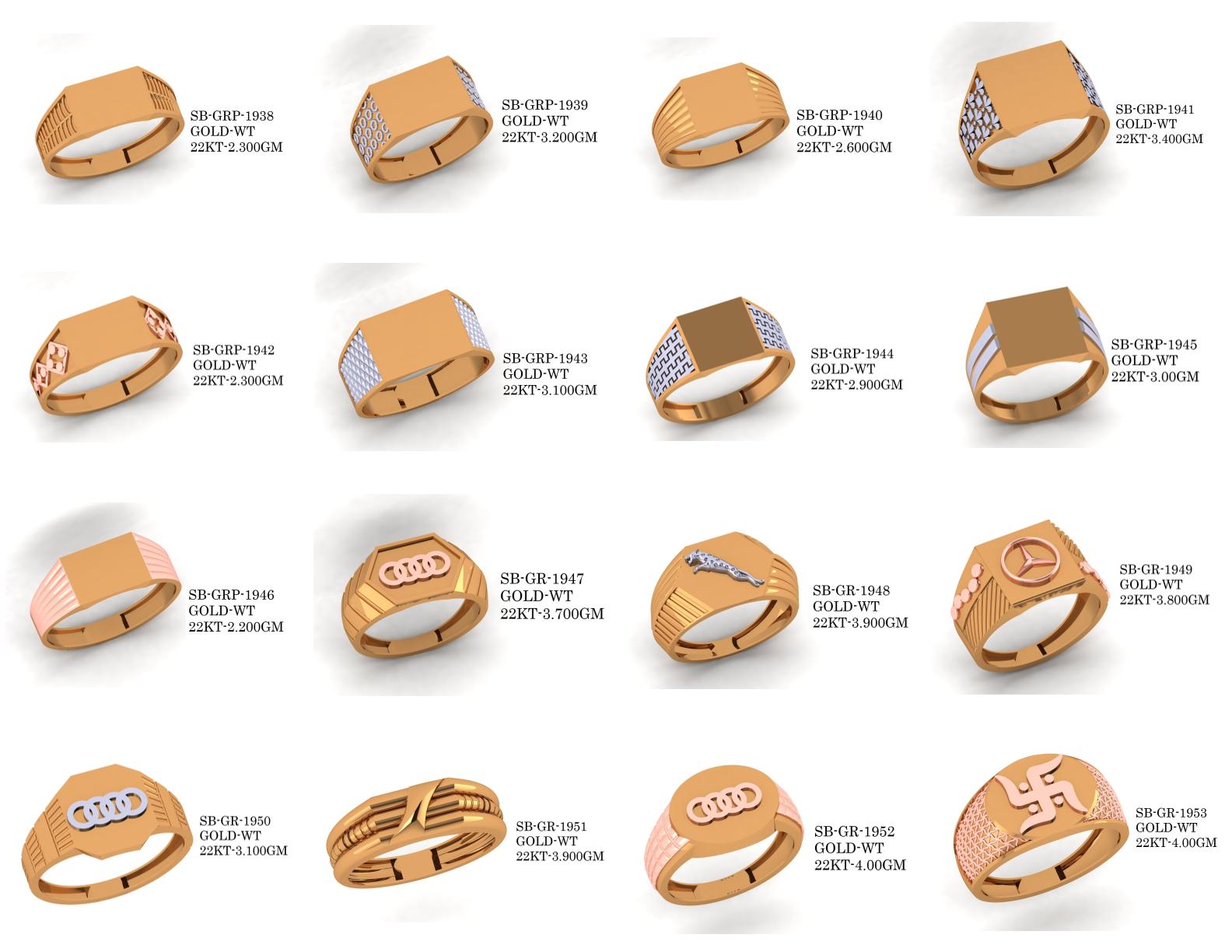

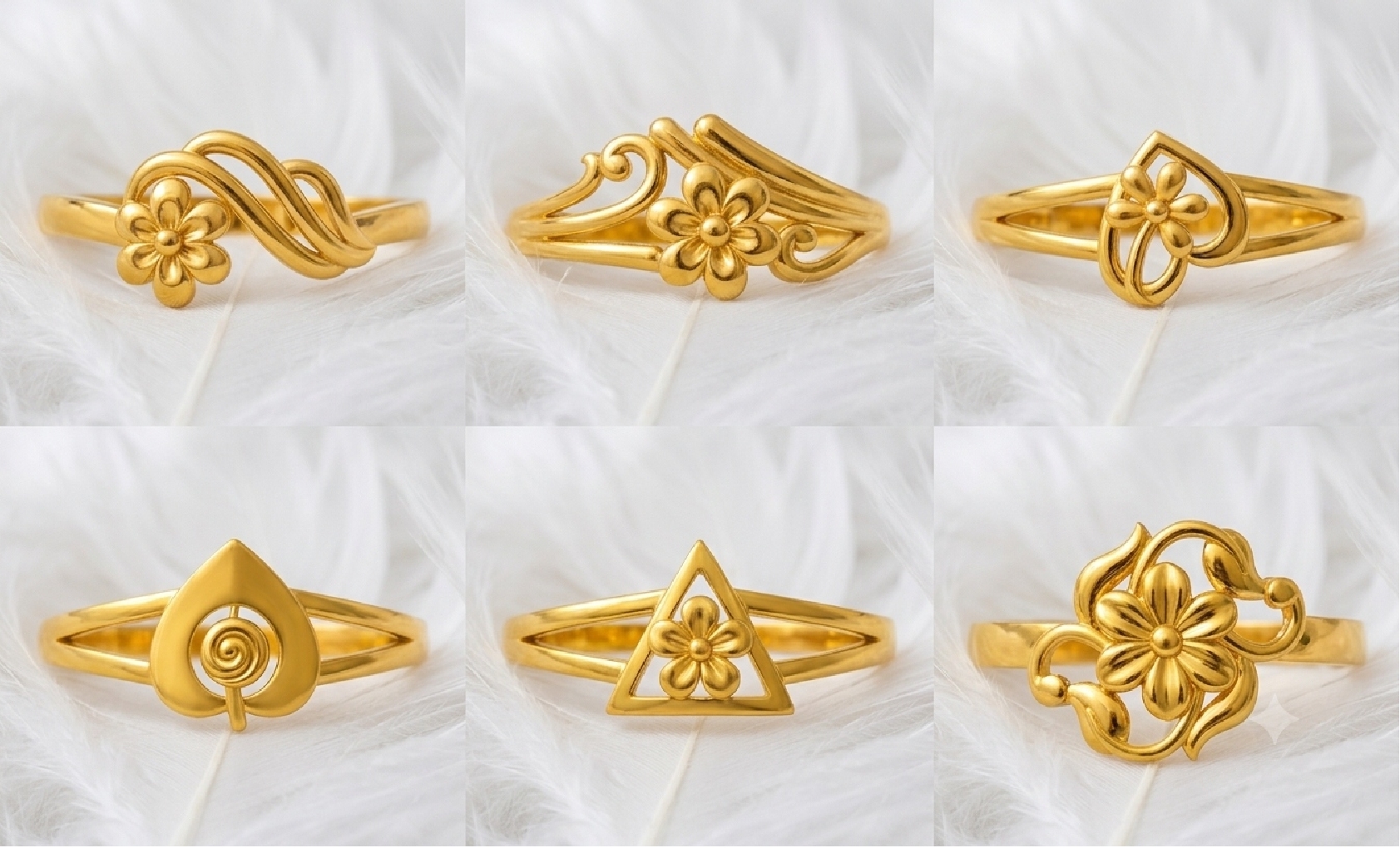

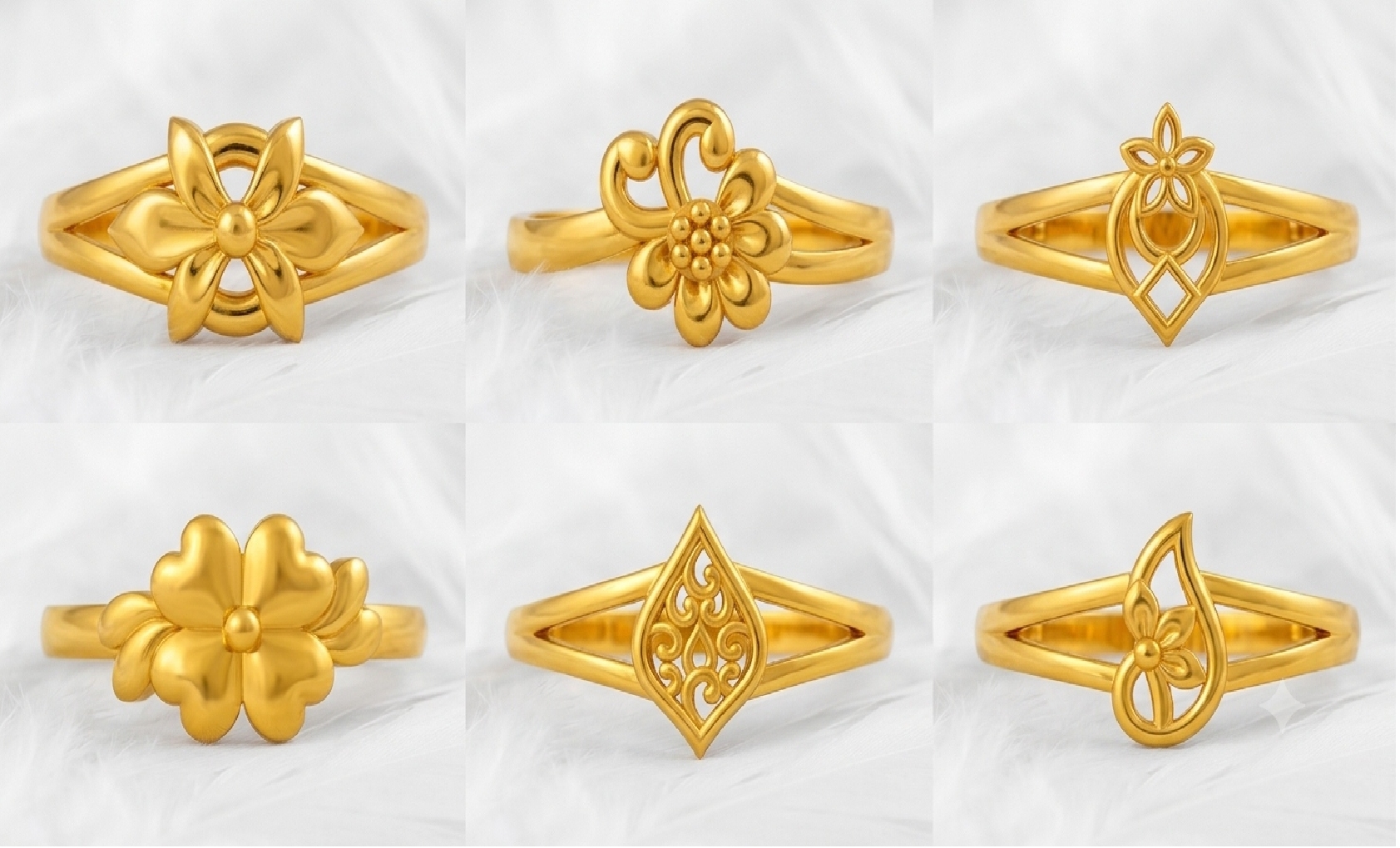

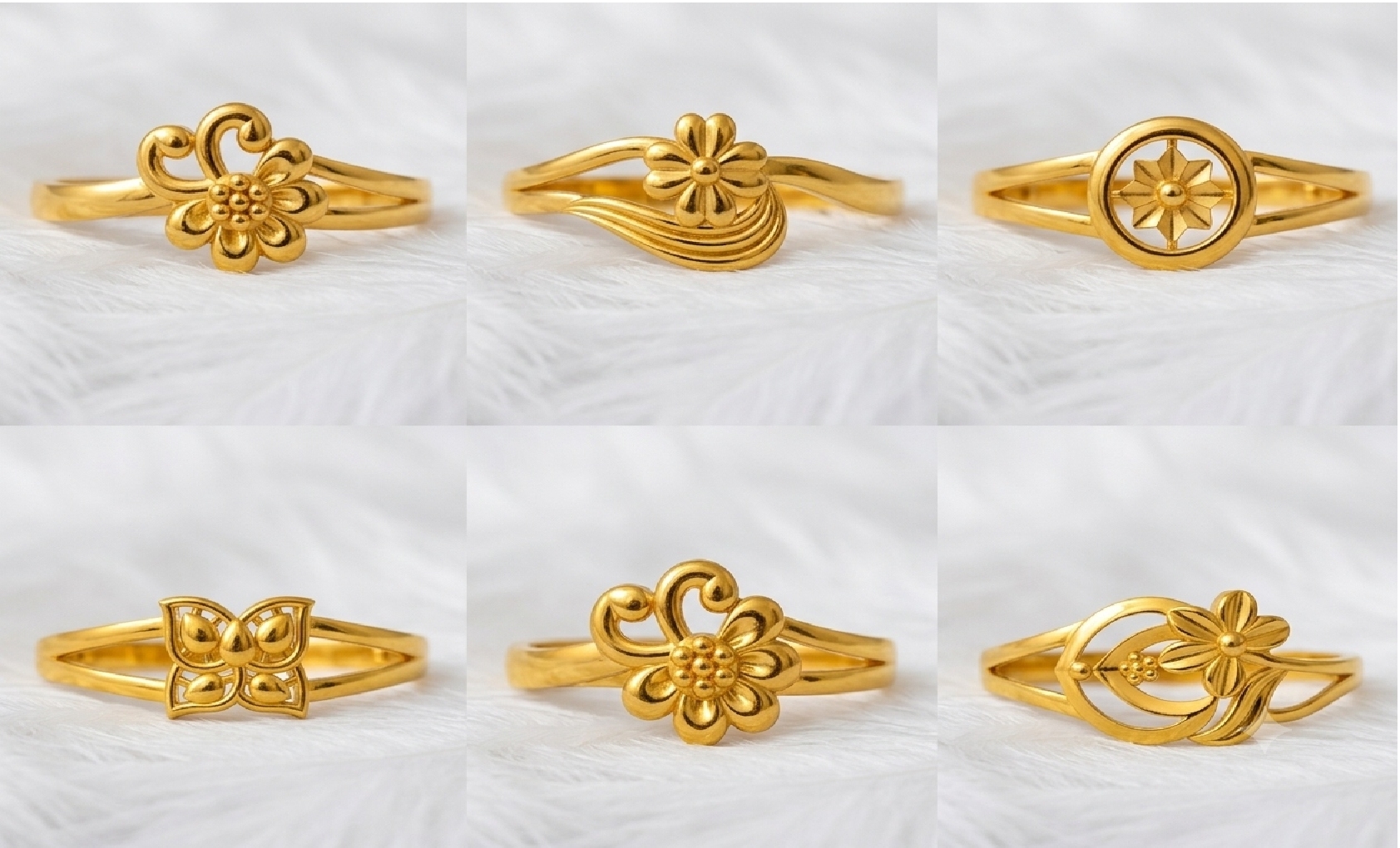

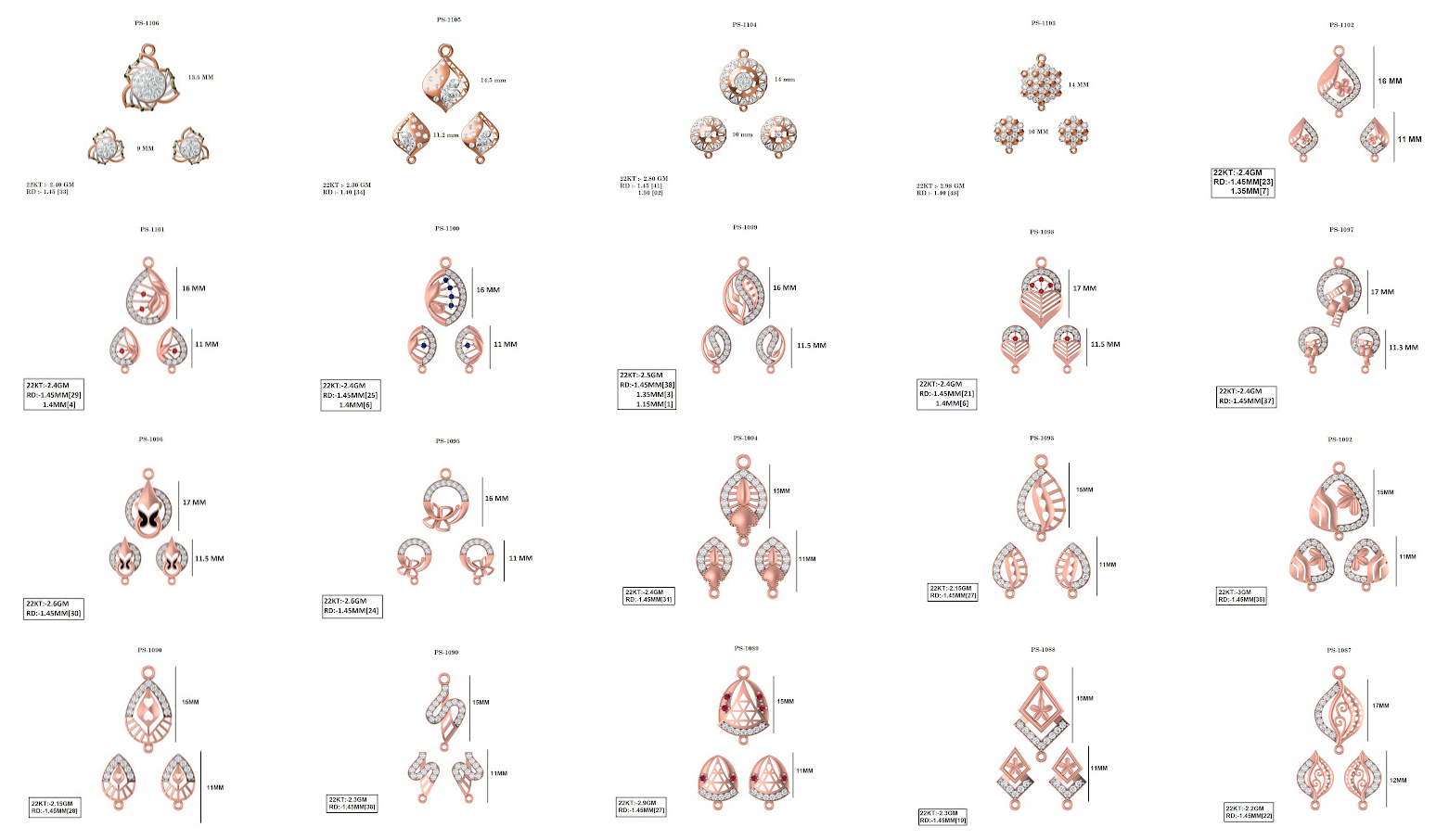

The Collection
View all designs

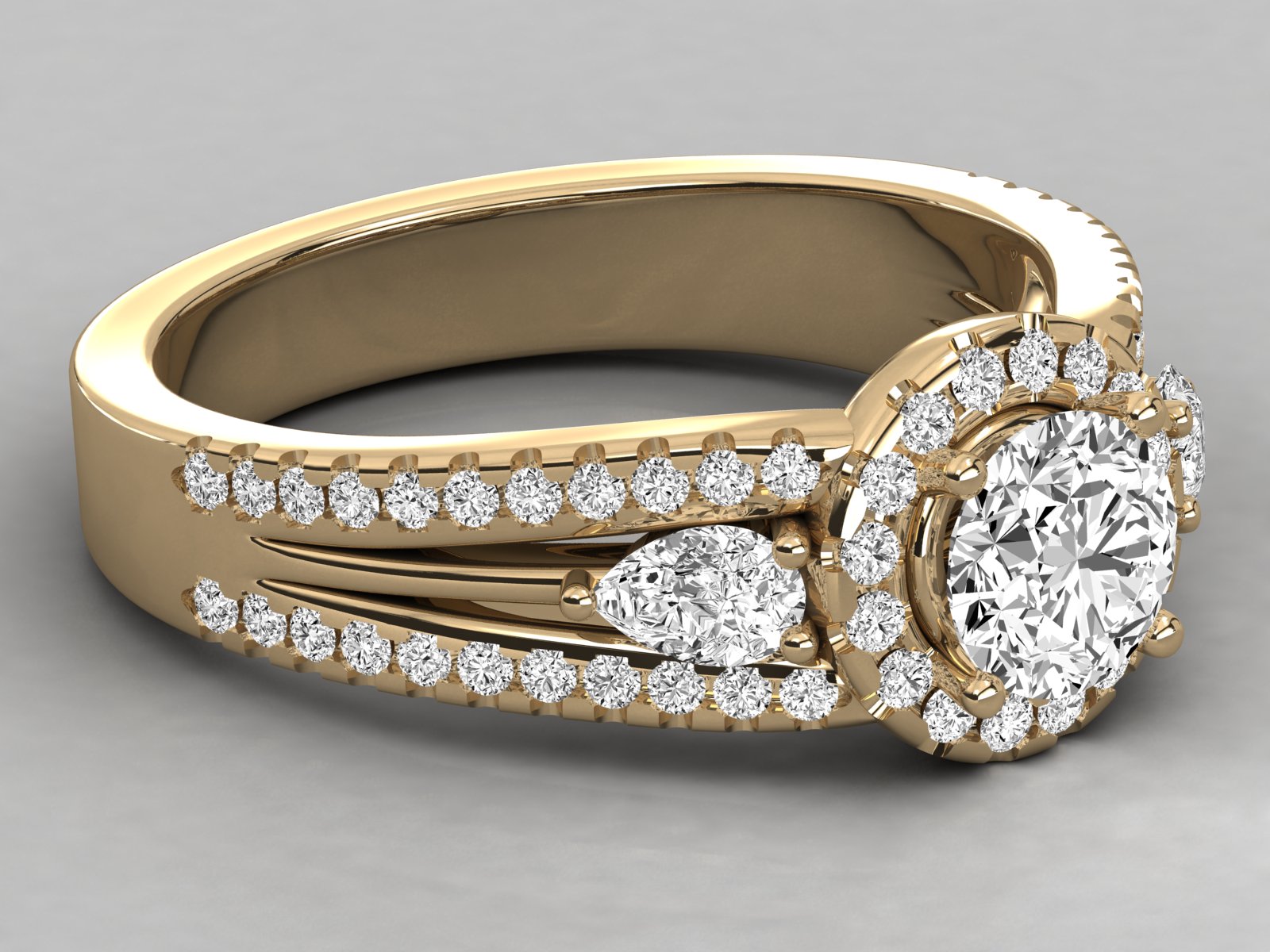

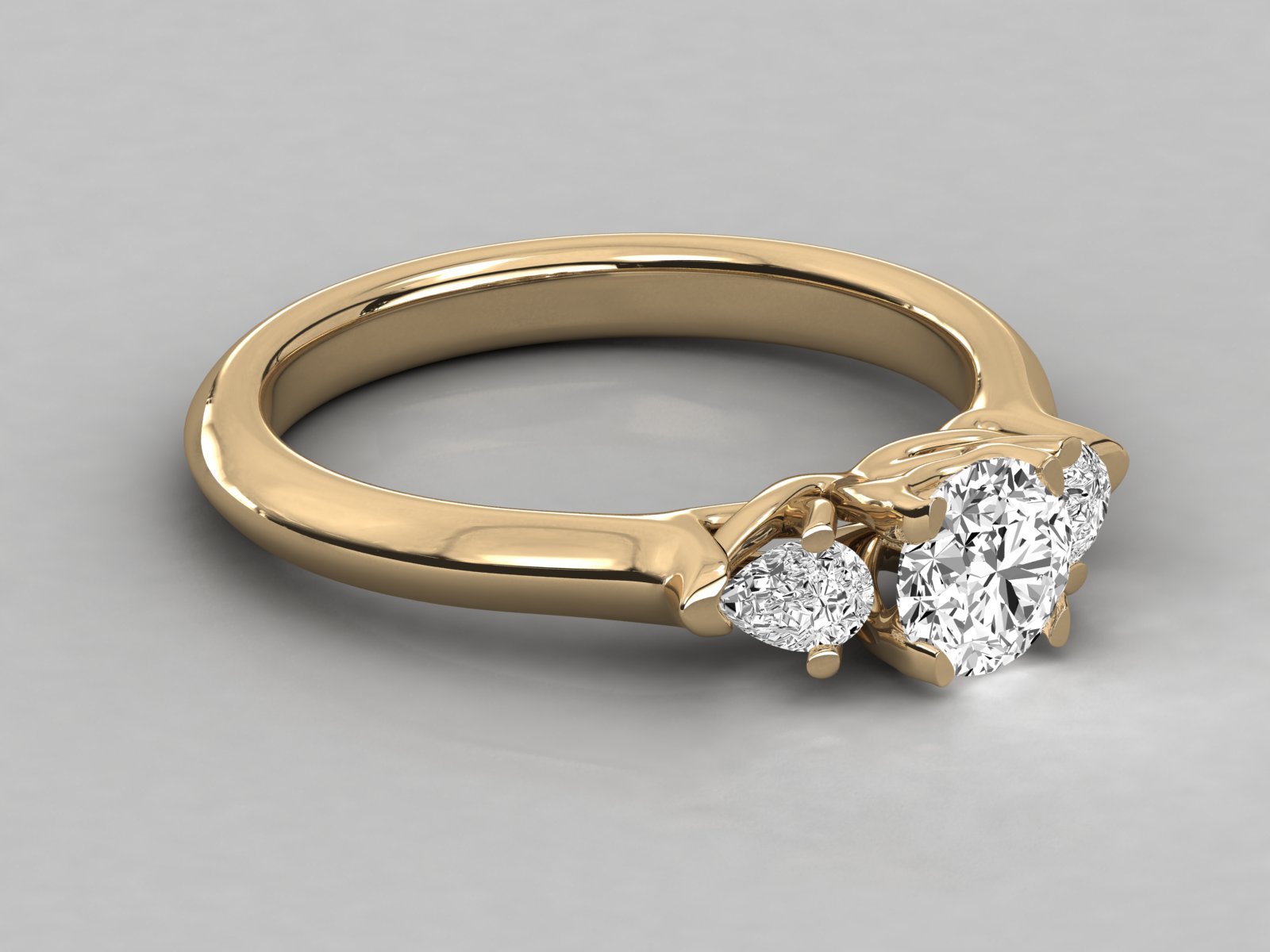

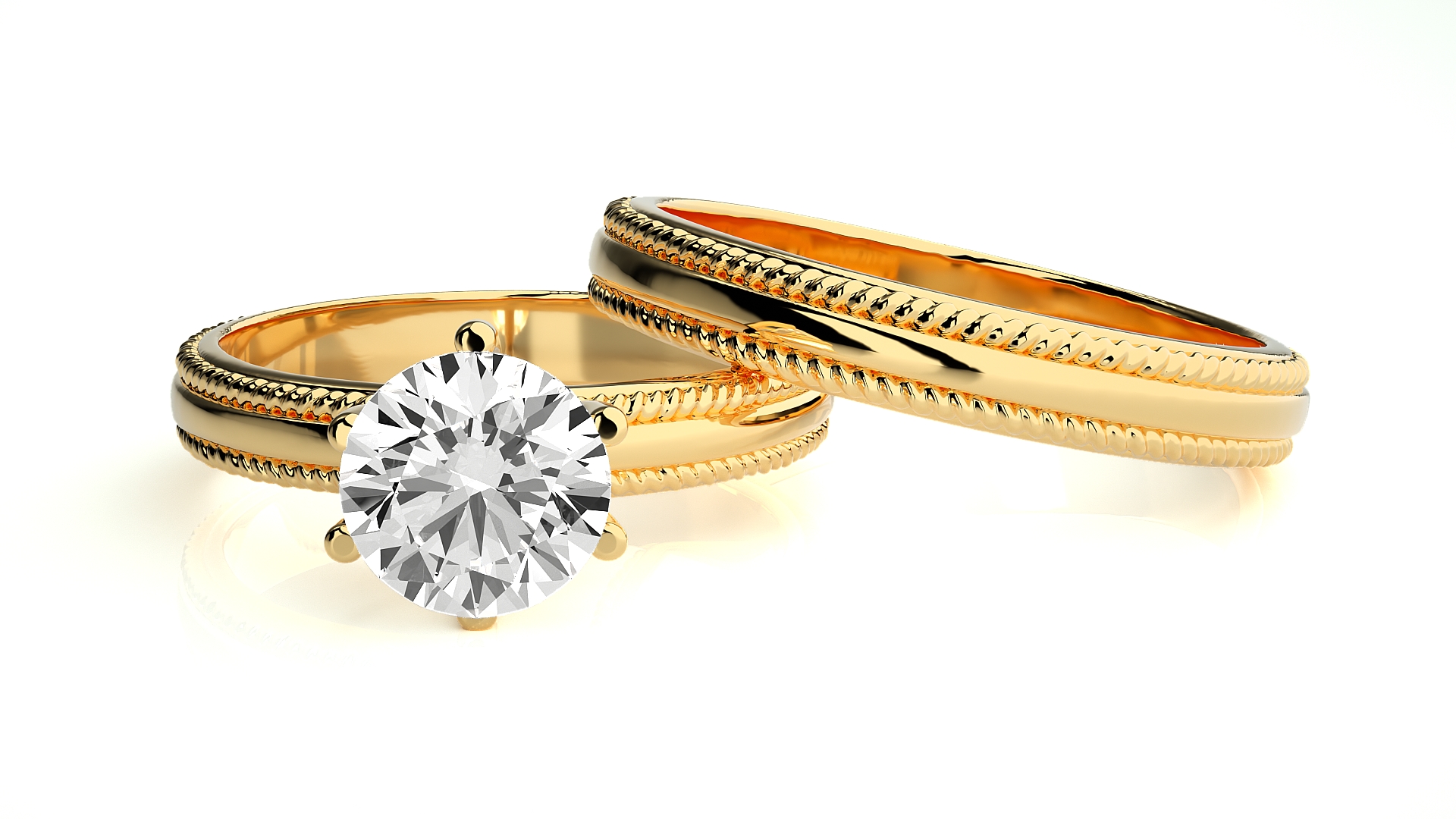

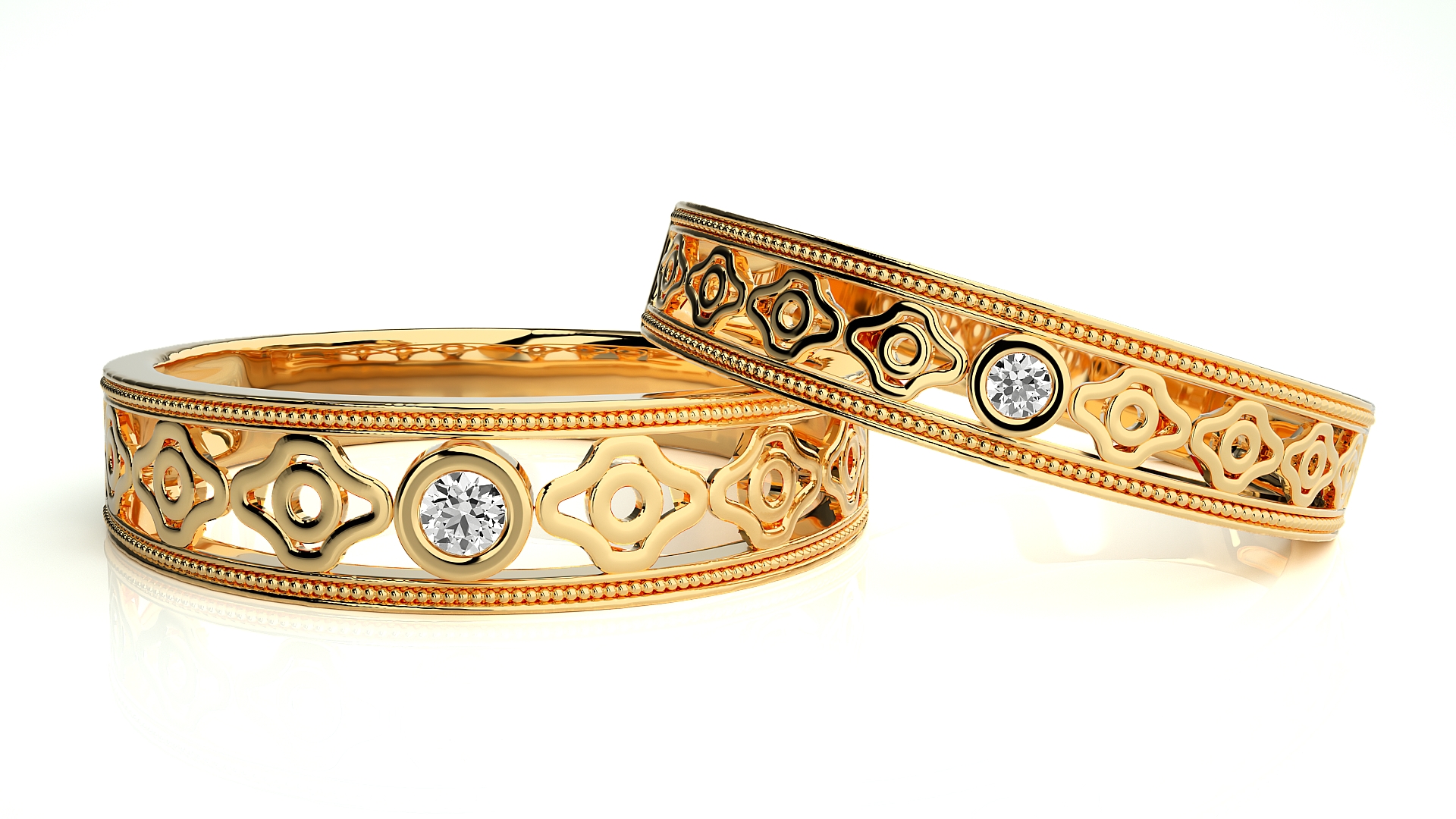

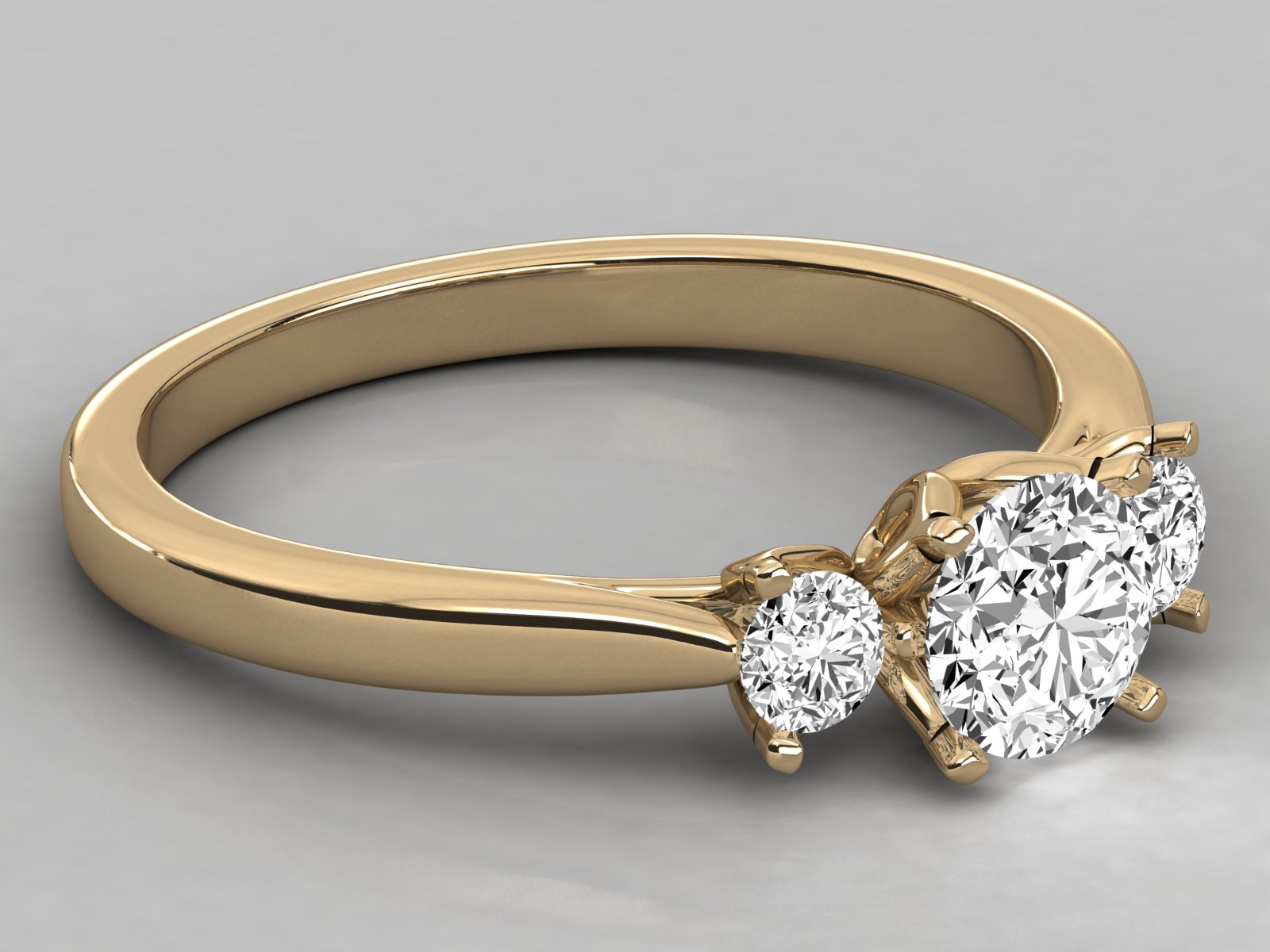

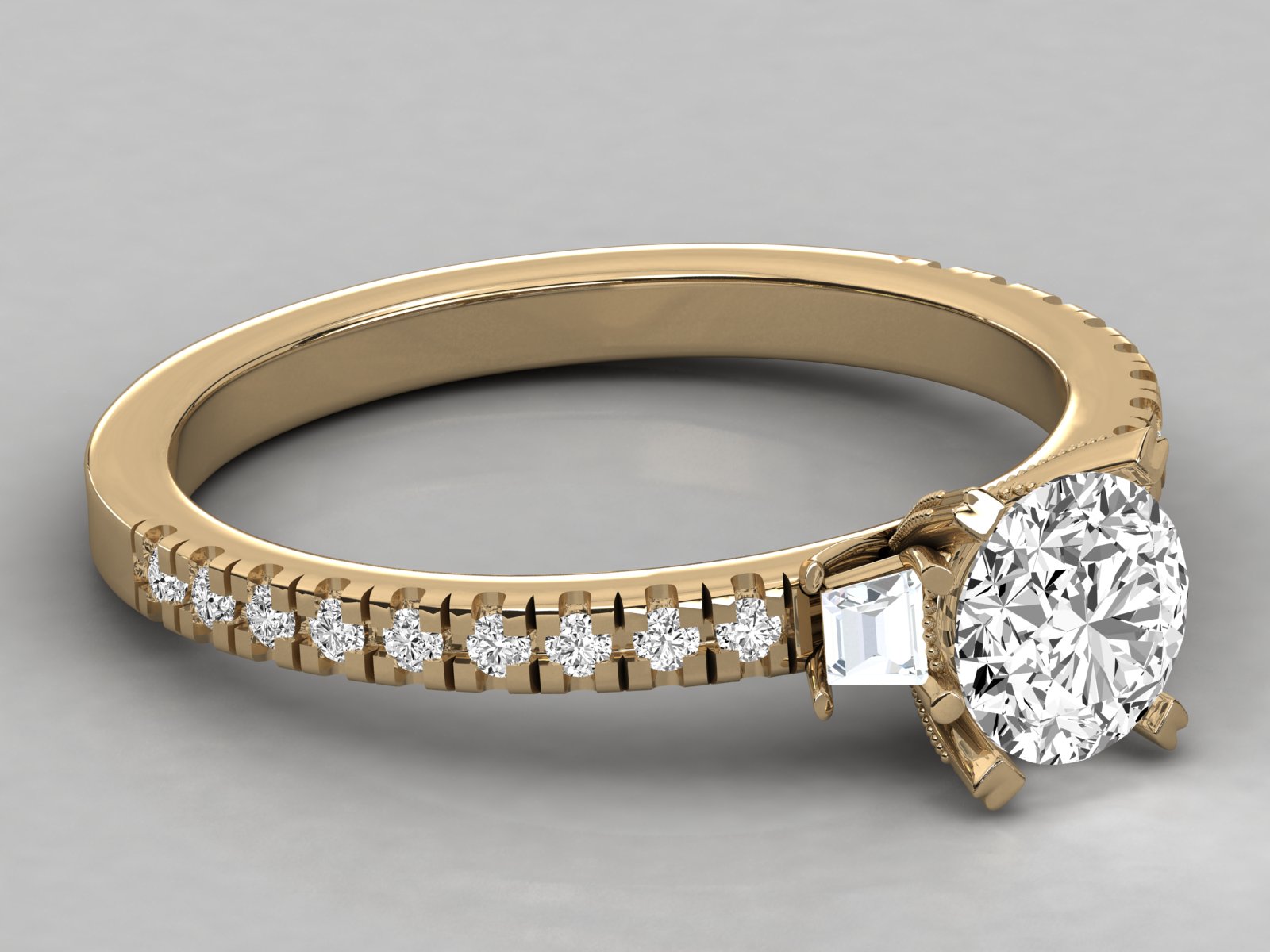

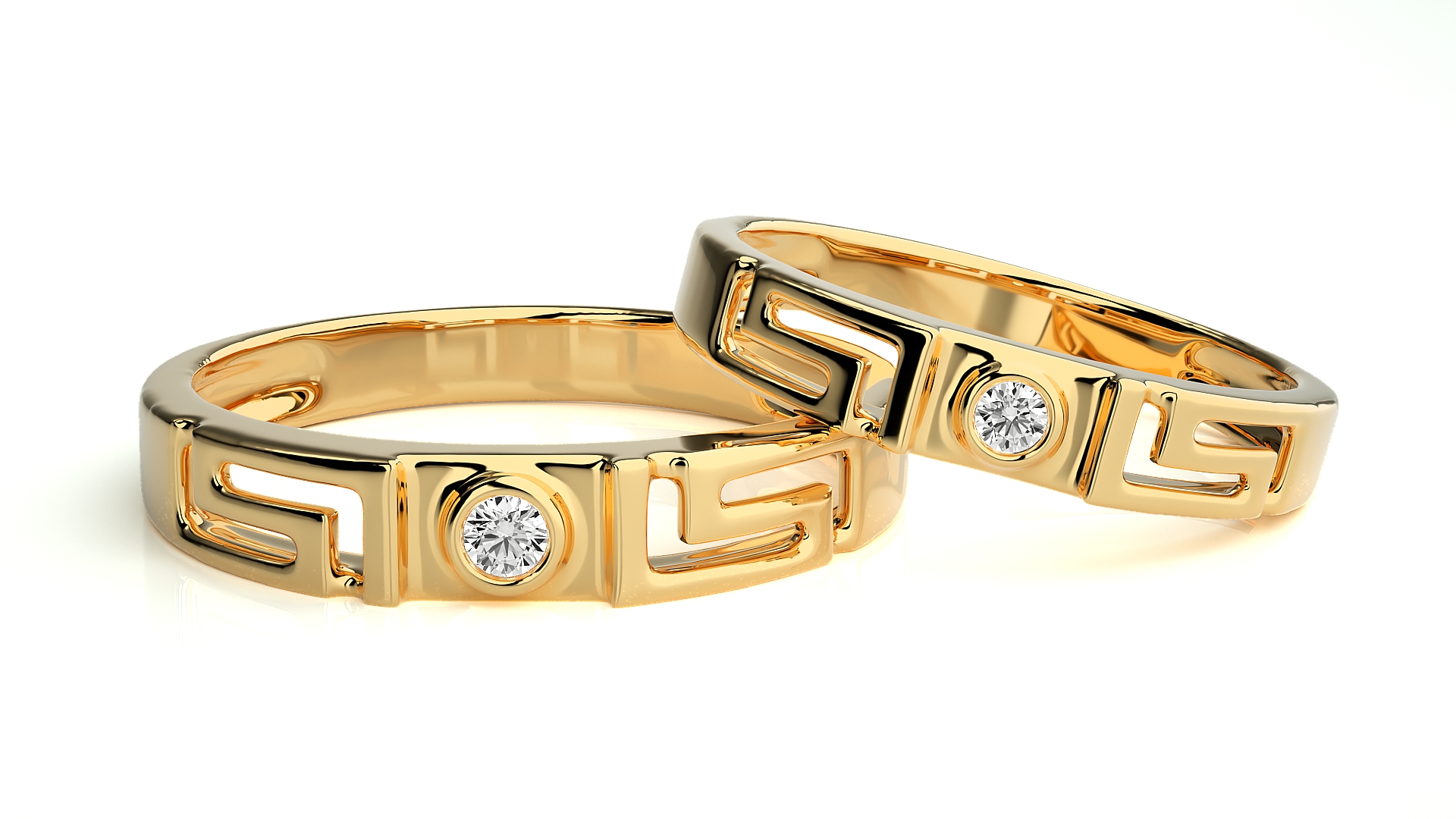

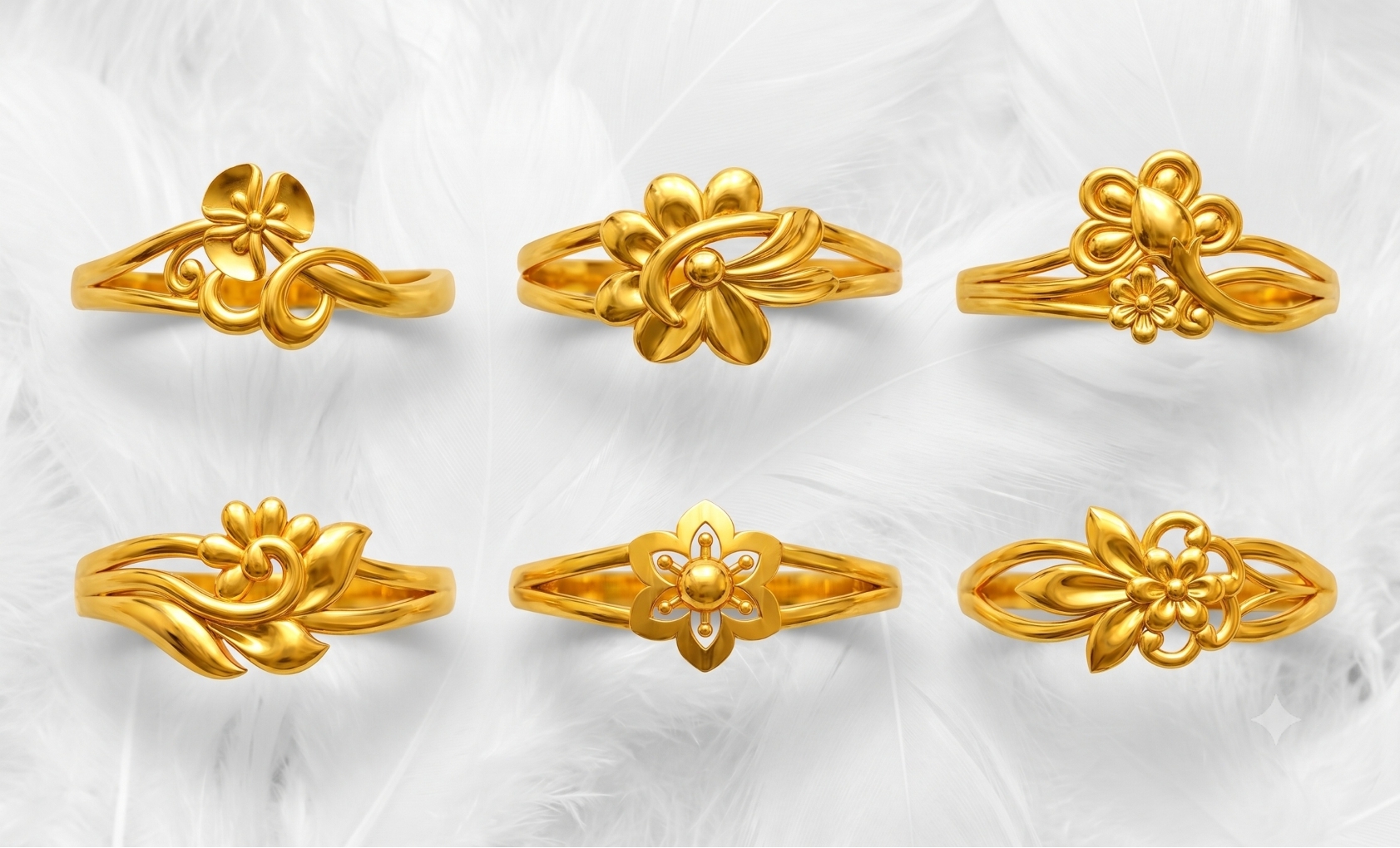

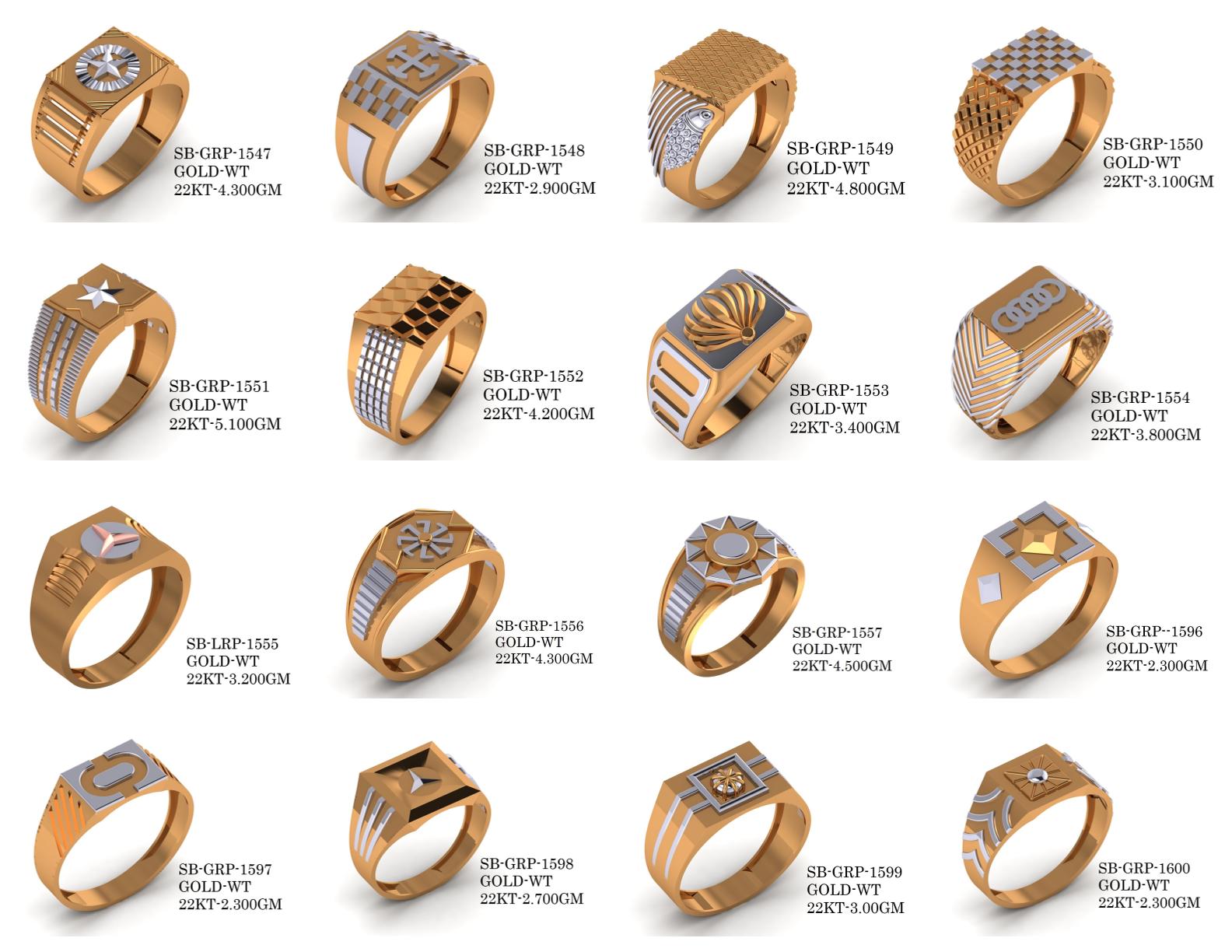

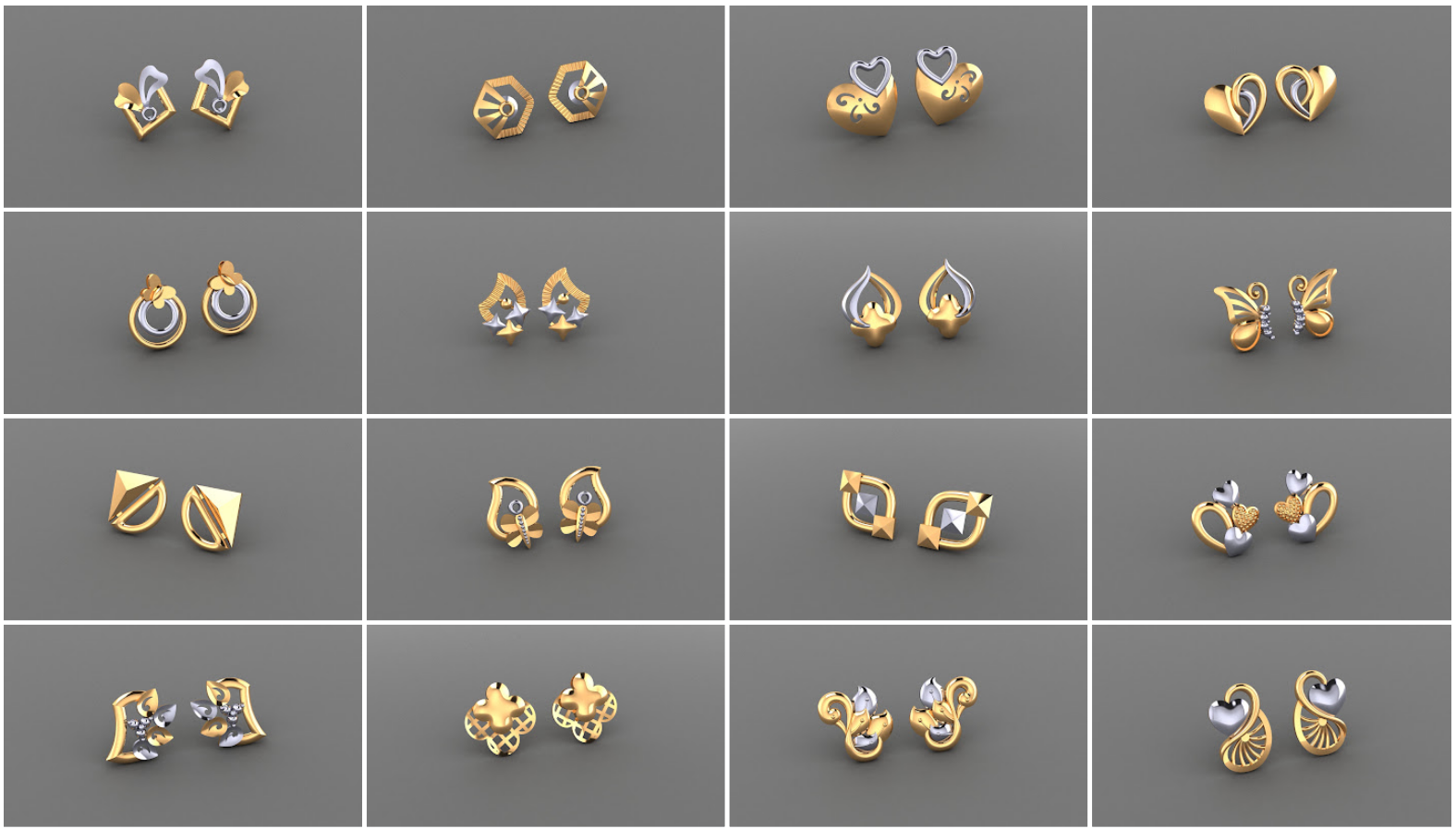

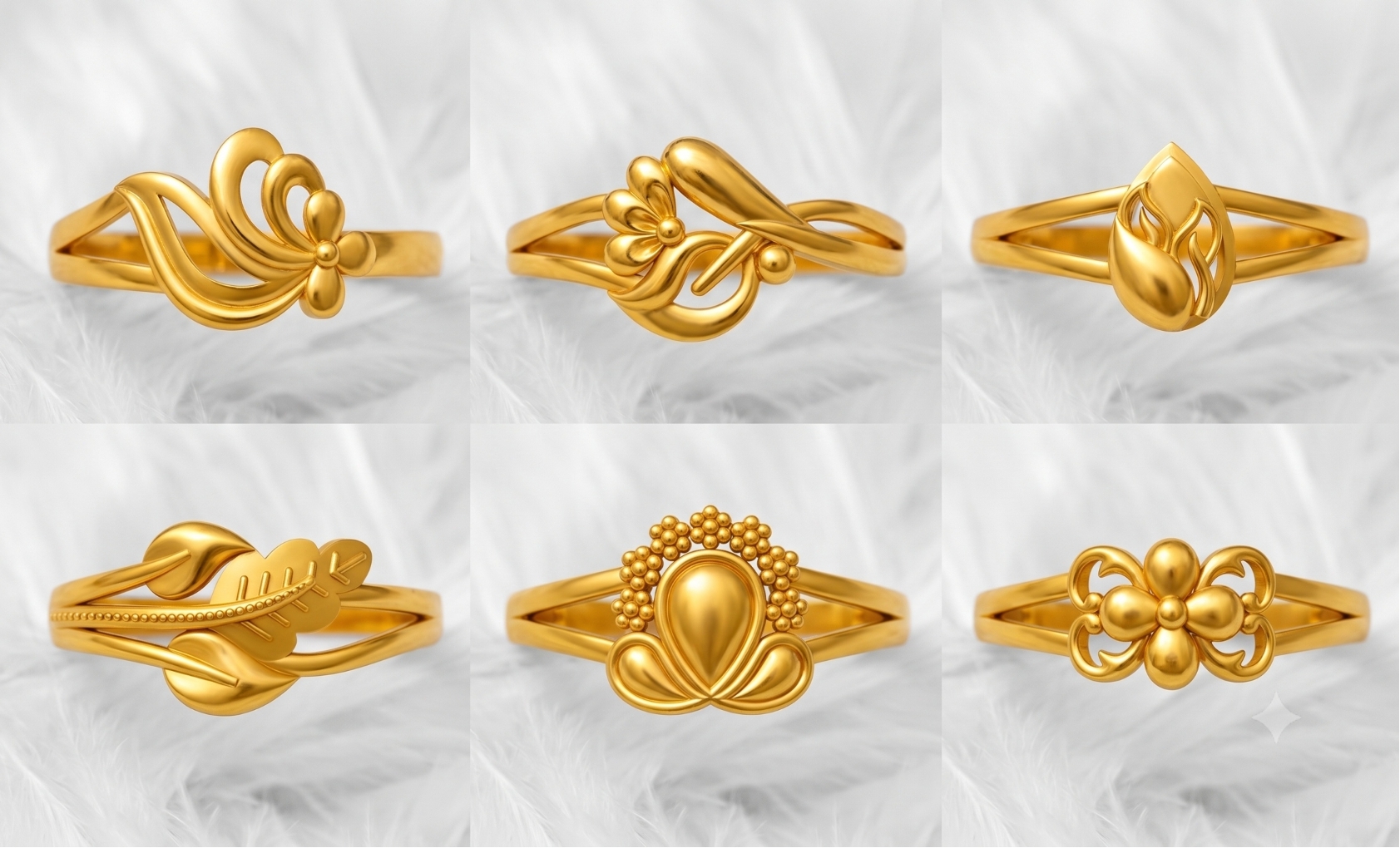

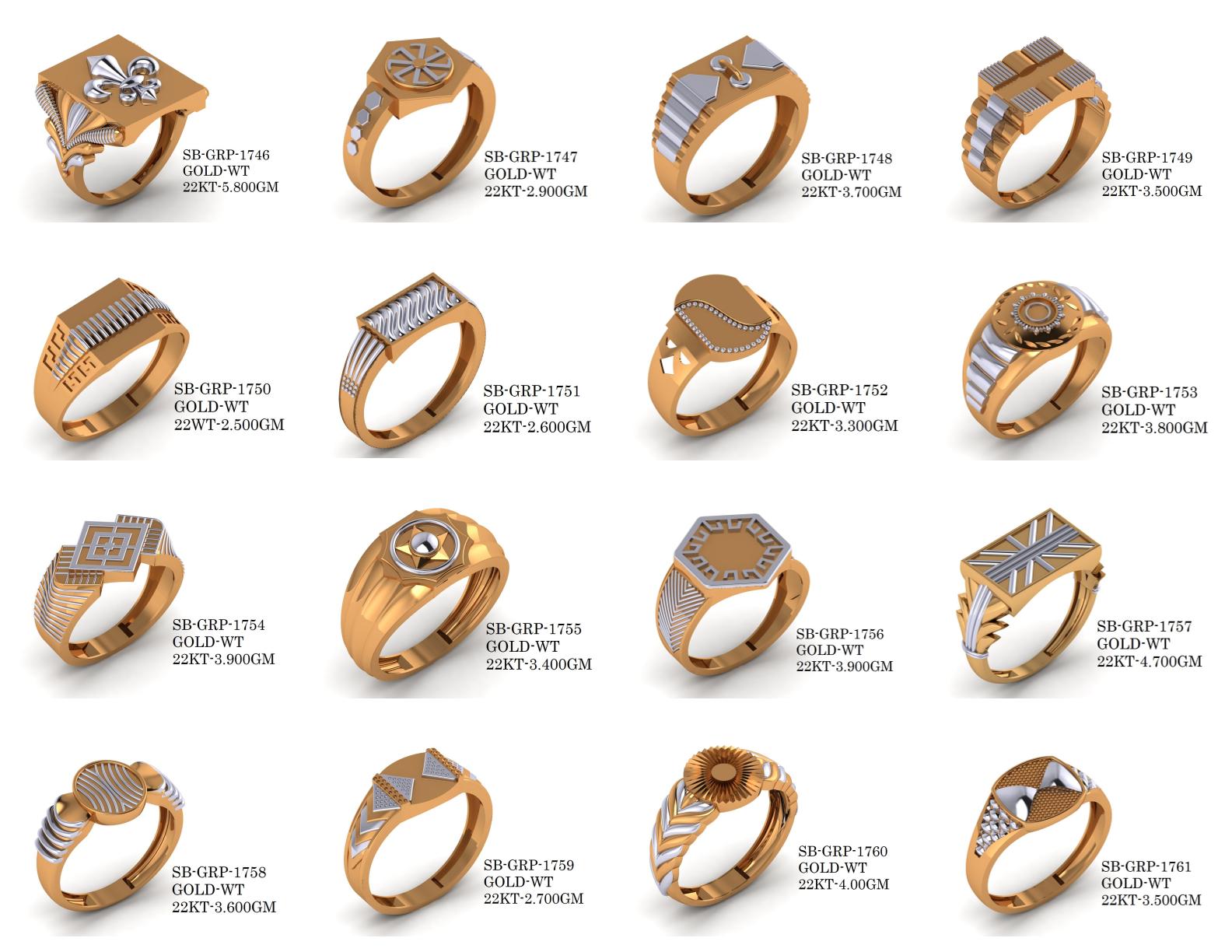

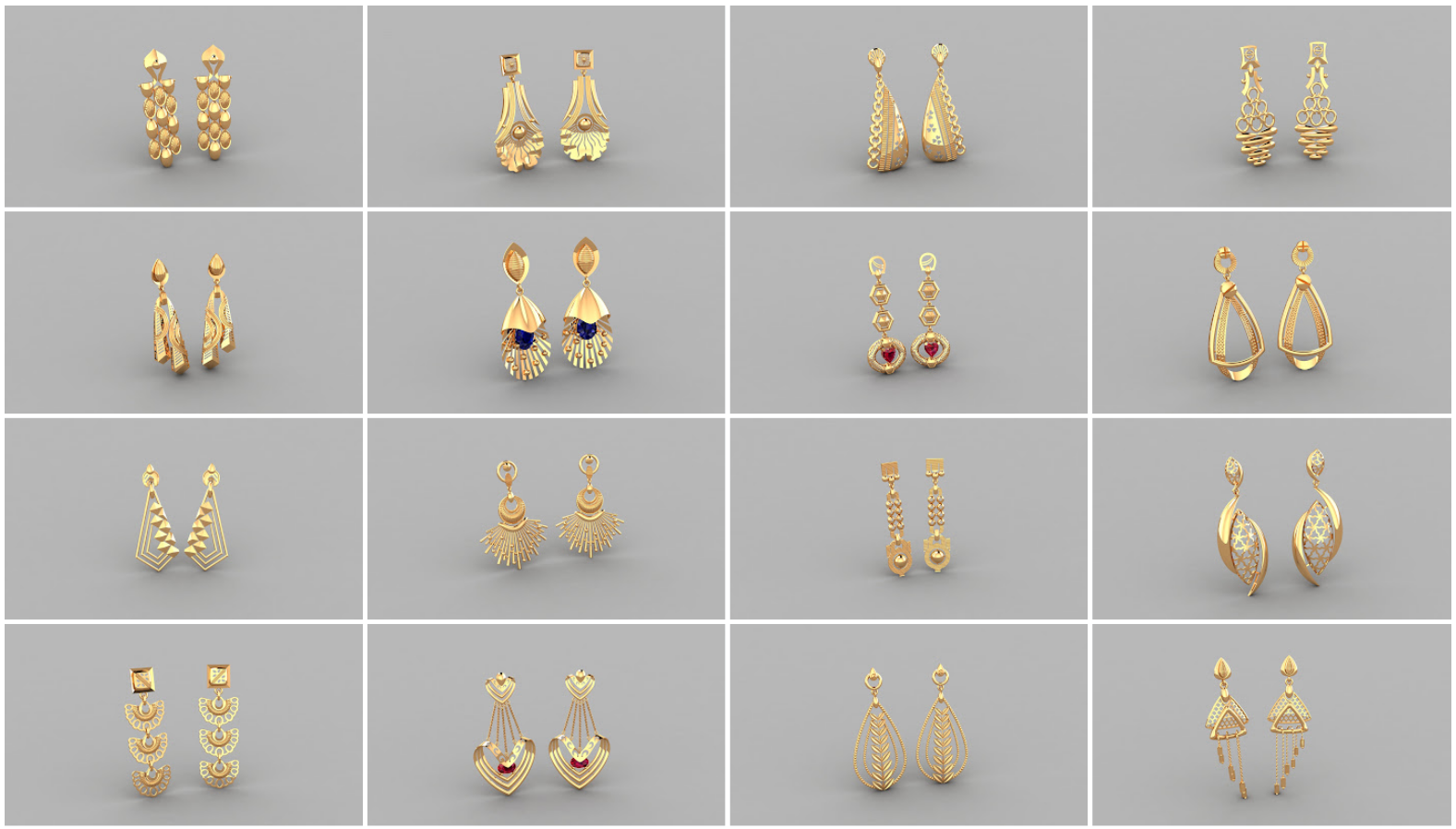

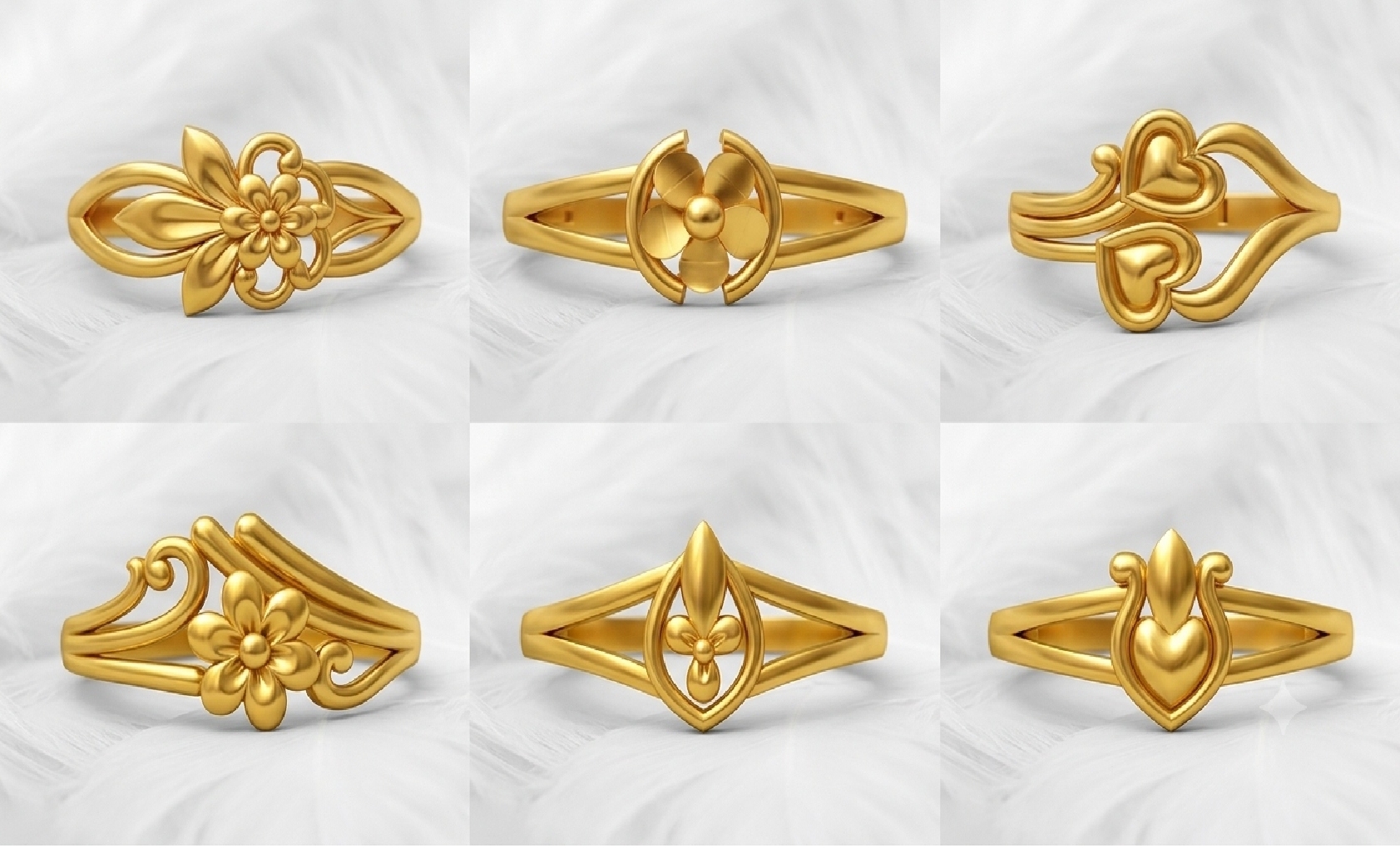

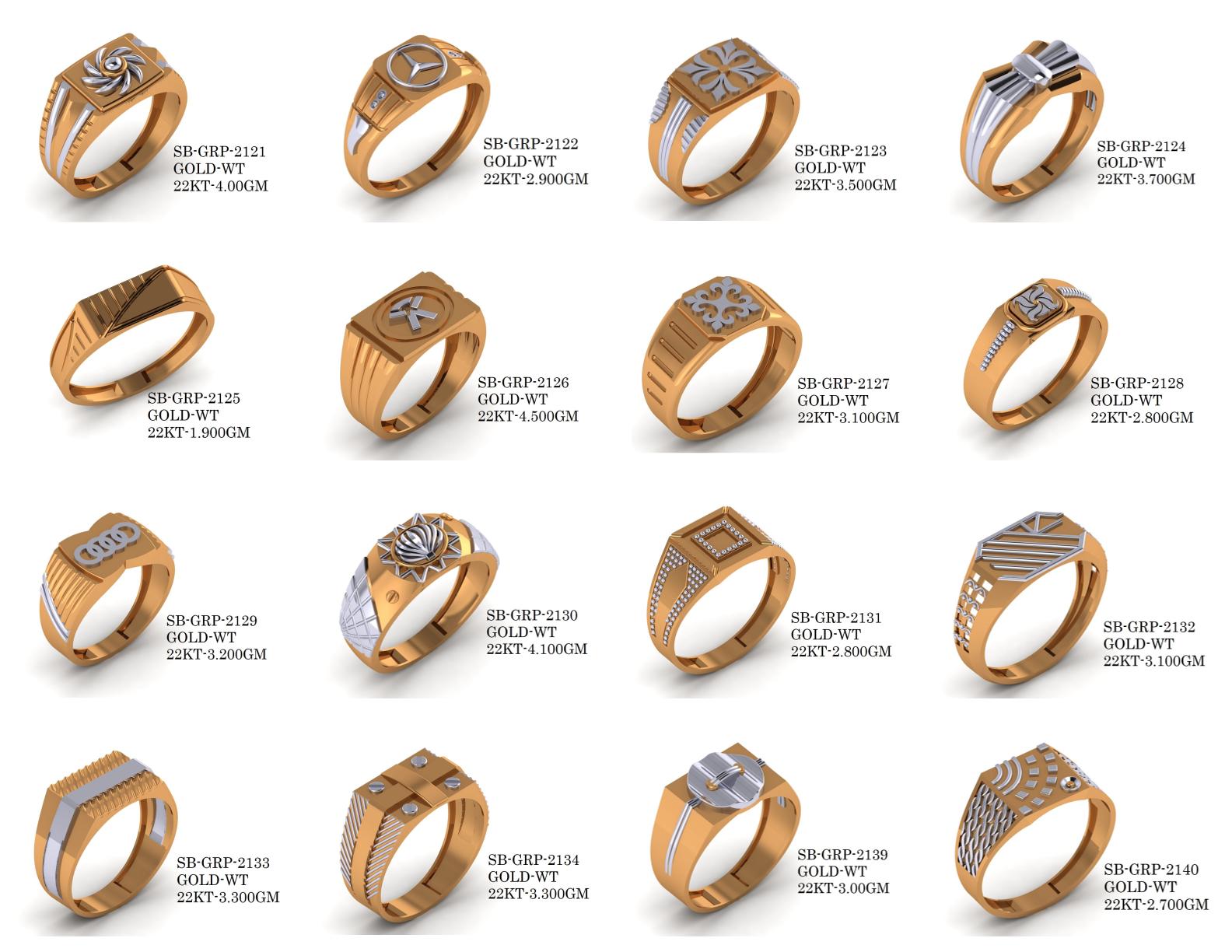

Ready to cast.
Production-ready CAD, priced per design. Your files are sent to you as soon as payment is confirmed.
Before You Buy
Built into every design
Instant download
Your files unlock the second payment is verified — no waiting on a human.
Secure payments
Razorpay handles UPI, cards and netbanking. We never see your card details.
Castable geometry
Watertight meshes with modelled seats and prongs, checked before publishing.
Commercial licence
Use purchased designs in client work and production runs.
Questions
Frequently Asked
Each listing states its format on the product card and detail page. Multi-format deliveries — CAD source plus meshes for printing — arrive as a single .zip archive.
Yes. Stone seats and prongs are modelled rather than boolean-cut, so meshes stay watertight through casting prep. Every design is checked before it is published.
Immediately. The moment Razorpay confirms your payment and our server verifies the signature, your download buttons unlock on the order confirmation page.
A commercial licence: use the design in client work and production runs. You may not resell or redistribute the CAD source files themselves.
Yes. Models are built at real-world scale in millimetres and can be scaled to any standard band size. The CAD spec sheet documents the original dimensions.
Your confirmation page link stays valid. If you cannot find it, use order lookup with your email and order reference, or email support@cadfilestrader.com and we will resend it.
Start with one
Send it straight to the bench.
11 designs ready to download — documented, castable and delivered the moment you pay.
